AIR CONDITIONING SYSTEM (for Manual Air Conditioning System) PARTS LOCATION

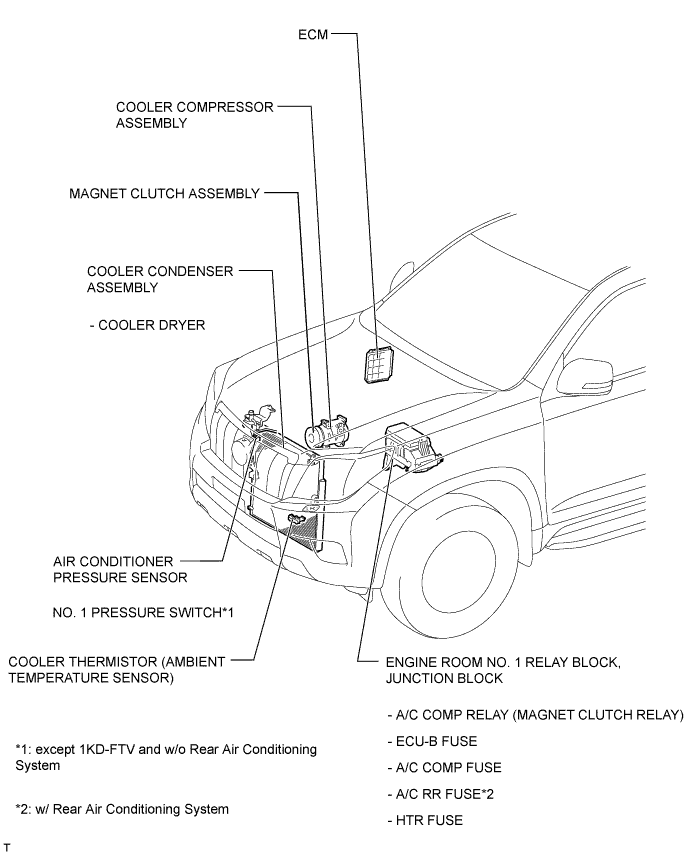

ILLUSTRATION

A009A8ZE01

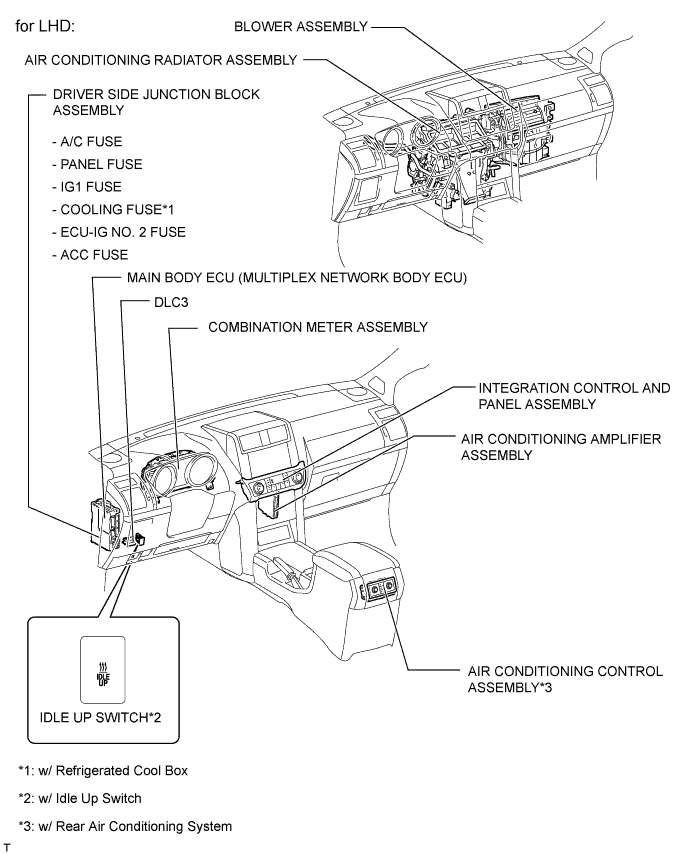

ILLUSTRATION

A009AEPE01

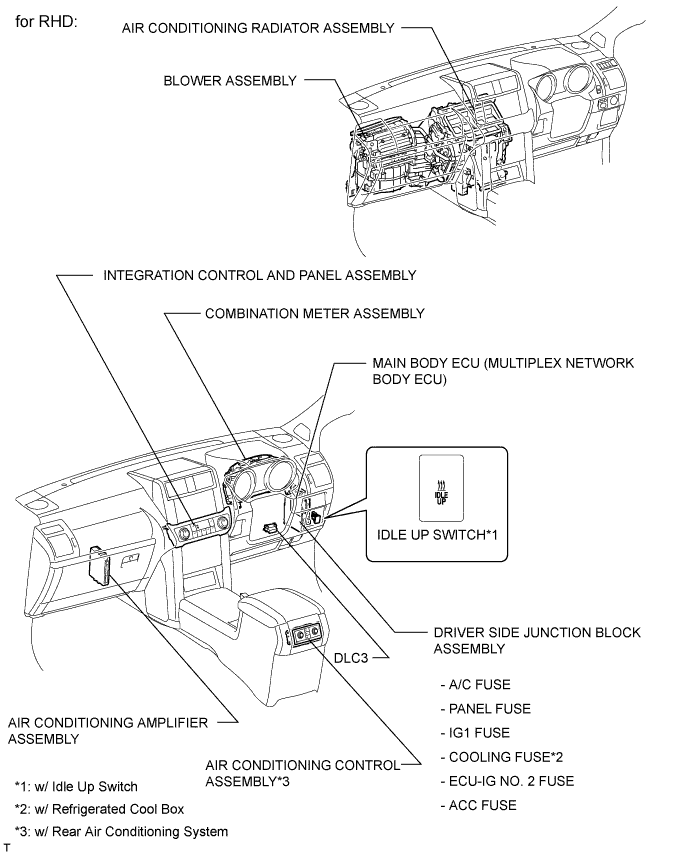

ILLUSTRATION

A00981CE01

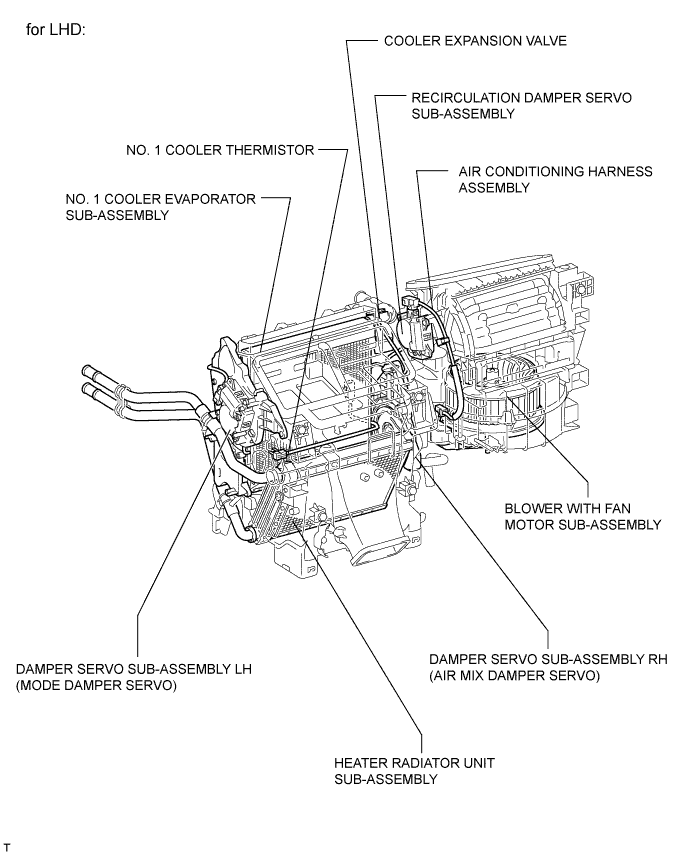

ILLUSTRATION

A009467E01

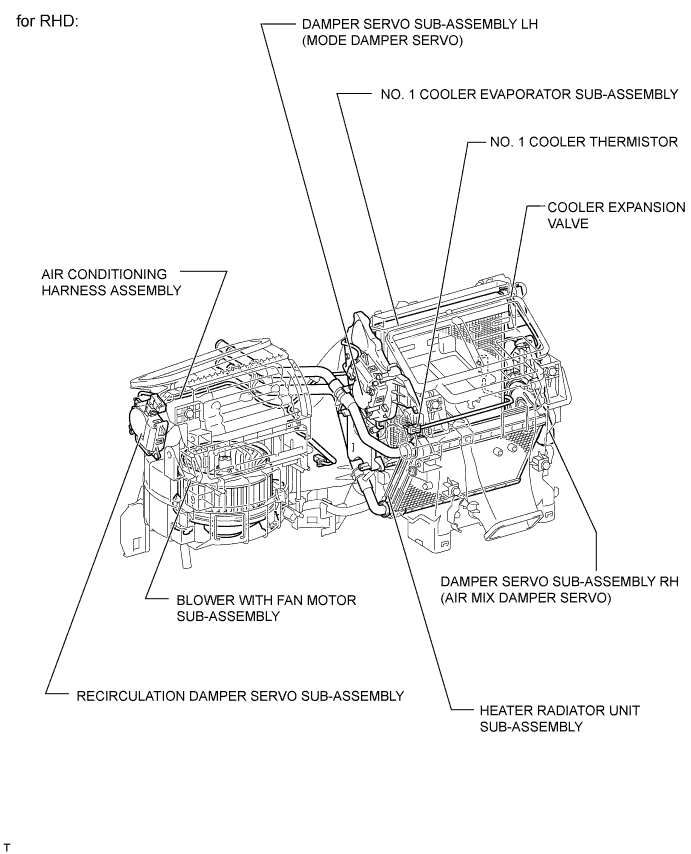

ILLUSTRATION

A0095IYE01

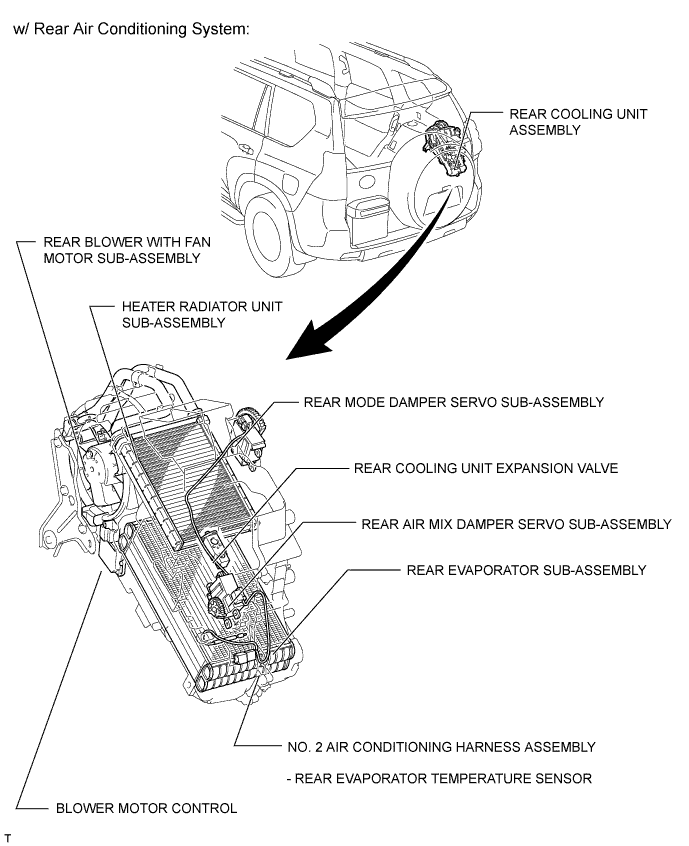

ILLUSTRATION

A0093XVE01

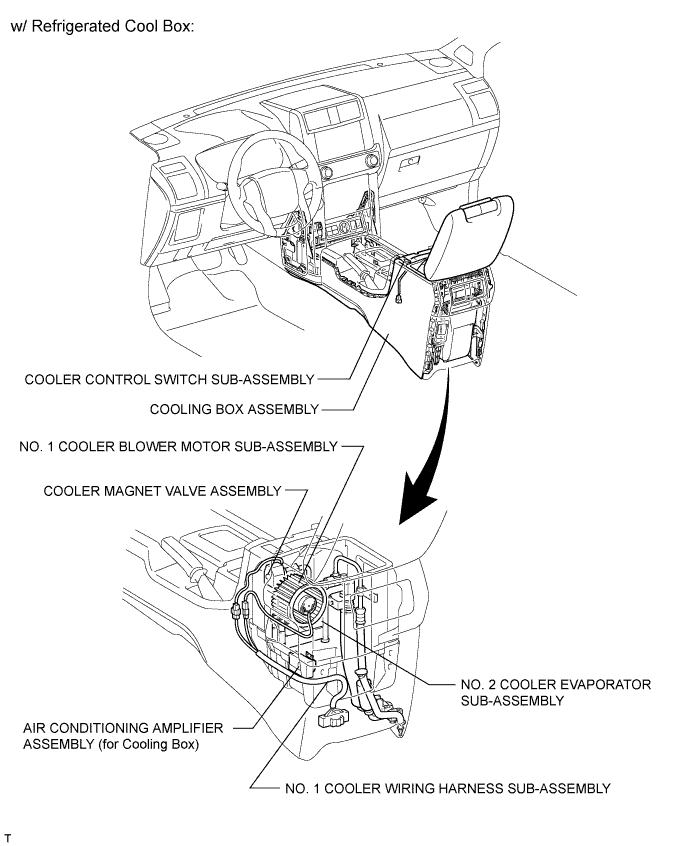

ILLUSTRATION

A0094DEE02
