SLIDING ROOF HOUSING REASSEMBLY

  1. INSTALL ROOF WIND DEFLECTOR PANEL SUB-ASSEMBLY

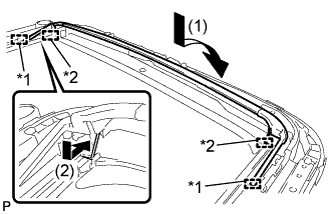

    1. Engage the 2 guides in the direction indicated by the arrow (1) in the illustration to install the roof wind deflector panel sub-assembly.

      A011SAUE01
      Text in Illustration
      *1 Guide
      *2 Spring

    2. Engage the 2 springs in the direction indicated by the arrow (2) in the illustration.

      Note

      Make sure that the springs are securely installed.

  2. INSTALL SLIDING ROOF DRIVE CABLE SUB-ASSEMBLY

    1. Hold down the roof wind deflector panel sub-assembly.

      A011SE3

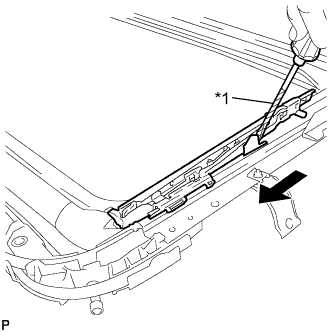

    2. Using a screwdriver, slide the sliding roof drive cable sub-assembly in the direction indicated by the arrow in the illustration to install it.

      A011TRKE01
      Text in Illustration
      *1 Protective Tape

      Tech Tips

      • Tape the screwdriver tip before use.

      • Use the same procedure for the other sliding roof drive cable sub-assembly.

  3. INSTALL REAR SLIDING ROOF PANEL

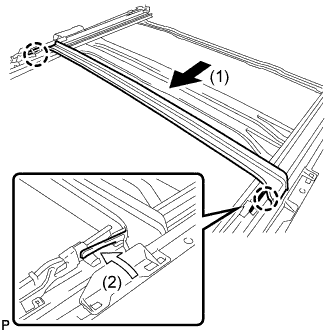

    1. Insert the rear sliding roof panel in the direction indicated by the arrow (1) in the illustration.

      A011UC2E01

    2. Engage the 2 claws in the direction indicated by the arrow (2) in the illustration to install the rear sliding roof panel.

  4. ADJUST FULLY CLOSED POSITION

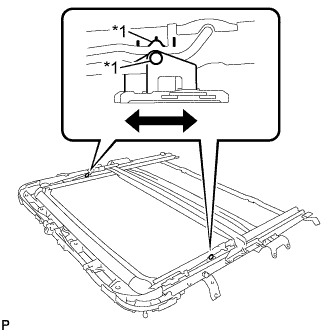

    1. Using a screwdriver, slide the sliding roof drive cable sub-assembly in either direction indicated by the arrows in the illustration and alignment marks.

      A011U3FE01
      Text in Illustration
      *1 Alignment Mark

      Tech Tips

      Tape the screwdriver tip before use.

  5. INSTALL SUNSHADE TRIM SUB-ASSEMBLY

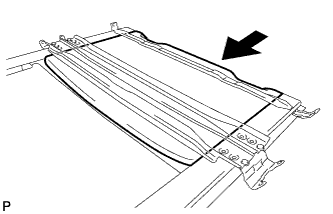

    1. Insert the sunshade trim sub-assembly into the sliding roof housing sub-assembly.

      A011S64

    2. Install the sliding roof piece sub-assembly LH with the screw.

      A011QZI
      Torque:
      2.0 N*m  { 20 kgf*cm, 18 in.*lbf }

      Tech Tips

      Use the same procedure for the RH side.

  6. INSTALL SLIDING ROOF DRIVE GEAR SUB-ASSEMBLY

    1. Install the sliding roof drive gear sub-assembly with the 2 bolts.

      A011QVG
      Torque:
      5.4 N*m  { 55 kgf*cm, 48 in.*lbf }

    2. Engage the guide and pin.

      A011V4VE01
      Text in Illustration
      *1 Guide
      *2 Pin

    3. Engage the claw and install the map light bracket.
