FRONT CRANKSHAFT OIL SEAL INSTALLATION

  1. INSTALL TIMING CHAIN CASE OIL SEAL

    1. Apply MP grease to a new timing chain case oil seal lip.

      A011S2EE06

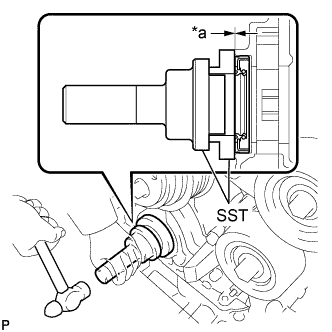

    2. Using SST and a hammer, tap in the timing chain case oil seal until its surface is flush with the timing chain cover edge.

      Text in Illustration
      *a

      Oil seal tap in depth

      (0 to 1.0 mm)
      SST
      09223-22010
      09506-35010
      Oil seal tap in depth
      0 to 1.0 mm (0 to 0.0393 in.)

      Note

      • Keep the lip free of foreign matter.

      • Do not tap the timing chain case oil seal at an angle.

  2. INSTALL CRANKSHAFT PULLEY

    1. Align the pulley set key with the key groove of the pulley, and slide on the pulley.

    2. Using SST, install the pulley bolt.

      A011SI9E03
      SST
      09213-70011   ( 09213-70020 )
      09330-00021
      Torque:
      250 N*m  { 2550 kgf*cm, 184 ft.*lbf }
      Text in Illustration
      *a Hold
      A011T1X Turn

  3. INSTALL V-RIBBED BELT

    1. Install the V-ribbed belt.

      A011UHDE02
      Text in Illustration
      *1 Water Pump
      *2 Idler
      *3 Generator
      *4 Crankshaft
      *5 Tensioner
      *6 A/C Compressor

    2. Turn the V-ribbed belt tensioner counterclockwise and remove the 5 mm hexagon wrench.

      A011SKF

    3. After installing the V-ribbed belt, check that it fits properly in the ribbed grooves. Confirm that the belt has not slipped out of the grooves on the bottom of the crank pulley by hand.

  4. INSTALL FRONT FENDER APRON SEAL RH

  5. INSTALL ENGINE UNDER COVER RH

  6. INSTALL FRONT WHEEL OPENING EXTENSION PAD RH

  7. INSTALL FRONT WHEEL RH

    Torque:
    103 N*m  { 1049 kgf*cm, 76 ft.*lbf }
