COMBINATION METER (w/o Multi-information Display) DISASSEMBLY


  1. REMOVE COMBINATION METER GLASS

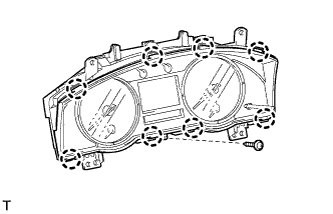

    1. A015AC0

      Remove the screw.

    2. Detach the 8 claws and remove the meter glass.

  2. REMOVE NO. 1 COMBINATION METER COVER

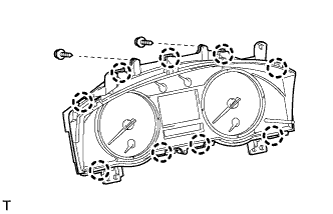

    1. A015AJA

      Remove the 2 screws.

    2. Detach the 9 claws and remove the cover.

  3. REMOVE NO. 2 COMBINATION METER COVER

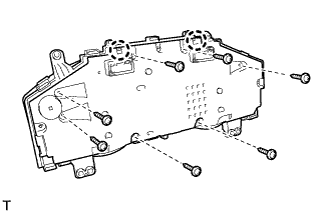

    1. A015BIJ

      Remove the 7 screws.

    2. Detach the 2 claws and remove the cover.
