AUDIO AND VISUAL SYSTEM (w/ Navigation System) Radio Receiver Power Source Circuit

Click here
Click here Click here
DTC Code DTC Name
  Radio Receiver Power Source Circuit
Click here

DESCRIPTION

This circuit provides power to the multi-media module receiver assembly.

Click here

WIRING DIAGRAM

Click here

INSPECTION PROCEDURE

Note:

Inspect the fuses for circuits related to this system before performing the following inspection procedure.

Click here

PROCEDURE


  1. Click here

    CHECK CHECK HARNESS AND CONNECTOR (MULTI-MEDIA MODULE RECEIVER ASSEMBLY - BATTERY AND BODY GROUND)


    1. A0159M0E13

      Disconnect the multi-media module receiver assembly connector.

    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance
      Tester Connection Condition Specified Condition
      F77-12 (GND1) - Body ground Always Below 1 Ω

    3. Measure the voltage according to the value(s) in the table below.

      Standard Voltage
      Tester Connection Condition Specified Condition
      F77-15 (IG) - Body ground Engine switch on (IG) 11 to 14 V
      F77-16 (ACC1) - Body ground Engine switch on (ACC) 11 to 14 V
      F77-17 (+B1) - Body ground Always 11 to 14 V
      Table 1. Text in Illustration
      *a

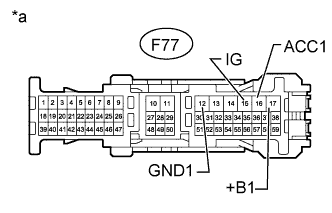

      Front view of wire harness connector

      (to Multi-media Module Receiver Assembly)

  2. Click here

    PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLEClick here

  3. Click here

    REPAIR OR REPLACE HARNESS OR CONNECTOR
