YAW RATE AND DECELERATION SENSOR (w/ VSC) REMOVAL

Click here
Click here Click here
  1. Click here

    PRECAUTION

    Note:

    After turning the ignition switch off, waiting time may be required before disconnecting the cable from the battery terminal. Therefore, make sure to read the disconnecting the cable from the battery terminal notice before proceeding with work (Click here).

  2. Click here

    DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

    Note:

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected (Click here).

  3. Click here

    REMOVE COOLING BOX ASSEMBLY (w/ Cool Box)

    (Click here)

  4. Click here

    REMOVE REAR CONSOLE BOX SUB-ASSEMBLY (w/o Cool Box)

    (Click here)

  5. Click here

    REMOVE YAW RATE SENSOR

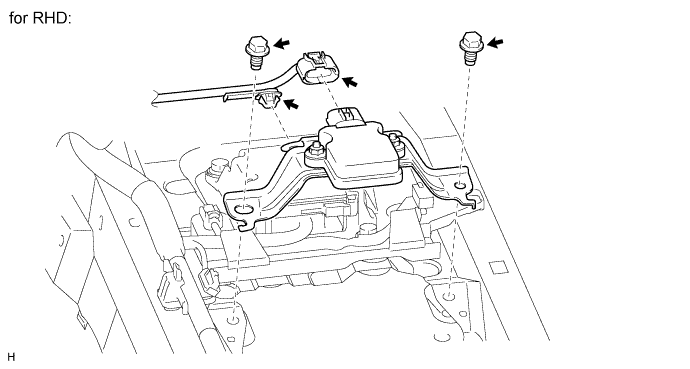

    1. A0158RUE01

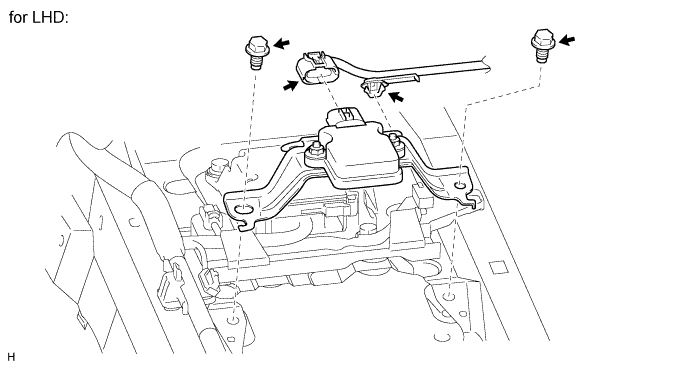

      A015E2BE01

      Disconnect the sensor connector, and then detach the clamp from the sensor bracket.

    2. Remove the 2 bolts and sensor.
