FRONT STABILIZER BAR (w/o KDSS) REMOVAL


  1. REMOVE FRONT WHEEL

  2. REMOVE FRONT FENDER SPLASH SHIELD SUB-ASSEMBLY LH


    1. A01588F

      Remove the 3 bolts and screw.

    2. Turn the clip indicated by the arrow in the illustration to remove the front fender splash shield sub-assembly LH.

  3. REMOVE FRONT FENDER SPLASH SHIELD SUB-ASSEMBLY RH


    1. A0159SG

      Remove the 3 bolts and 2 screws.

    2. Turn the clip indicated by the arrow in the illustration to remove the front fender splash shield sub-assembly RH.

  4. REMOVE NO. 1 ENGINE UNDER COVER SUB-ASSEMBLY


    1. A0157XJ

      Remove the 10 bolts and No. 1 engine under cover sub-assembly.

  5. LOOSEN NO. 1 FRONT STABILIZER BRACKET LH

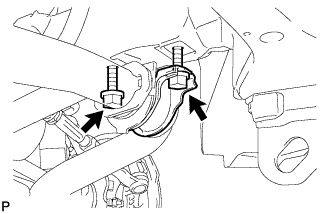

    1. A015AX2

      Loosen the 2 bolts of the front stabilizer brackets.

  6. LOOSEN NO. 1 FRONT STABILIZER BRACKET RH


    1. A015AWN

      Loosen the 2 bolts of the front stabilizer brackets.

  7. REMOVE FRONT STABILIZER LINK ASSEMBLY LH


    1. A015C31

      Remove the bolt, nut and stabilizer link.

      Tech Tips

      If the ball joint turns together with the nut, use a 6 mm hexagon wrench to hold the stud.

  8. REMOVE FRONT STABILIZER LINK ASSEMBLY RH


    1. A015DGG

      Remove the bolt, nut and stabilizer link.

      Tech Tips

      If the ball joint turns together with the nut, use a 6 mm hexagon wrench to hold the stud.

  9. REMOVE NO. 1 FRONT STABILIZER BRACKET LH

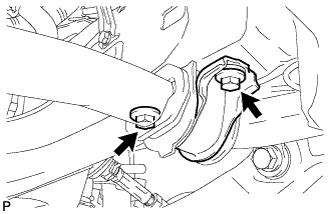

    1. A0158MN

      Remove the 2 bolts and stabilizer bracket from the front frame assembly.

  10. REMOVE NO. 1 FRONT STABILIZER BRACKET RH

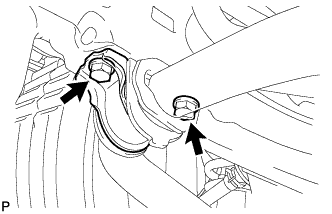

    1. A015BMP

      Remove the 2 bolts and stabilizer bracket from the front frame assembly.

  11. REMOVE FRONT STABILIZER BAR


    1. Remove the front stabilizer bar from the frame assembly.

  12. REMOVE NO. 1 FRONT STABILIZER BAR BUSH


    1. Remove the front stabilizer bar bush from the front stabilizer bar.
