FRONT UPPER SUSPENSION ARM DISASSEMBLY

Click here
Click here Click here
  1. Click here

    REMOVE FRONT SUSPENSION UPPER ARM BUSH


    1. Using a hammer and chisel, strike and bend the entire flange of the upper arm bush as shown in the illustration.

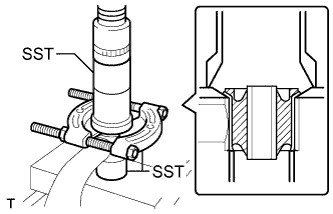

    2. A0158BOE01

      Using SST and a press, press out the bush.

      09613-26010
      09710-22021 09710-01031
      09950-00020
      Tip:

      Remove the rear side bush using the same procedure as for the front side.

  2. Click here

    REMOVE FRONT UPPER BALL JOINT DUST COVER LH


    1. Using a snap ring expander, remove the dust cover set ring and dust cover from the upper arm.

      Note:

      • Do not damage the ball joint dust cover.

      • If the ball joint dust cover is damaged, replace it.
