FRONT SHOCK ABSORBER DISPOSAL


  1. DISPOSE OF FRONT SHOCK ABSORBER ASSEMBLY LH


    1. Set the front shock absorber assembly on its side.

    2. Fully extend the shock absorber rod.

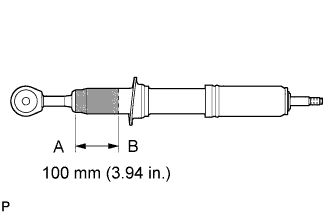

    3. A015AW5E01

      Using a drill, make a hole in the cylinder between A and B shown in the illustration to discharge the gas inside.

      CAUTION:

      Be careful when drilling because shards of metal may fly about. Always use the proper safety equipment.

      Note

      The gas is colorless, odorless and nonpoisonous.
