FRONT SHOCK ABSORBER REASSEMBLY

Click here
Click here Click here
  1. Click here

    INSTALL FRONT COIL SPRING LH


    1. Secure SST in a vise.

      09727-30021 09727-00010 09727-00021 09727-00031
    2. A015AVRE04

      Attach the arm of SST to the diameter of the coil spring.

      Table 1. Text in Illustration
      *a Correct
      *b Incorrect
      CAUTION:

      • Make sure that the coil spring is installed so that the distance between the upper and lower hooks of SST is at the maximum.

      • Make sure that the claws of the hooks are securely attached.

    3. Using SST, compress the coil spring.

      CAUTION:

      • If the coil spring bends during the compression, immediately stop the compression and reinstall SST.

      • Do not compress the spring until the coil springs contact each other.

      • Do not use an impact wrench.

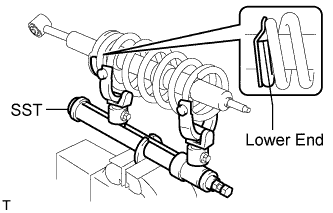

    4. A0156KEE01

      Install the coil spring to the shock absorber.

      Tip:

      Fit the lower end of the coil spring into the recess of the spring seat of the shock absorber.

  2. Click here

    INSTALL FRONT SUSPENSION SUPPORT SUB-ASSEMBLY LH


    1. Install the 2 cushions, 2 retainers and suspension support to the piston rod.

    2. Temporarily install a new front shock absorber nut to the suspension support.

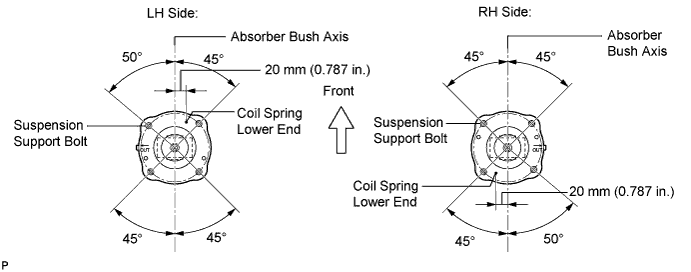

    3. A015C0WE01

      Position the suspension support as shown in the illustration.

    4. Remove SST.

      Note:

      Do not use an impact wrench. It will damage the shock absorber rod.

      Tip:

      Release the coil spring while checking the position of the suspension support.

  3. Click here

    TIGHTEN FRONT SUPPORT TO FRONT SHOCK ABSORBER NUT


    1. Tighten the nut.

      65 N*m 575 kgf*cm 48 ft.*lbf
