OIL LEVEL SENSOR INSTALLATION


  1. INSTALL ENGINE OIL LEVEL SENSOR

    A015CS5

    1. Install a new gasket to the sensor.

    2. Install the sensor with the 4 bolts.

      Torque:
      10 N*m  { 102 kgf*cm, 7 ft.*lbf }

    3. Connect the sensor connector.

  2. CONNECT OIL COOLER TUBE (for Automatic Transmission)

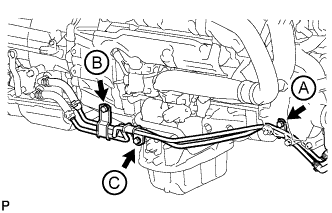

    1. A015C5HE01

      Temporarily install the oil cooler tube to the engine with the 2 bolts A and B.

    2. Install the bolt C and tighten it to the specified torque. Then tighten the bolt A and B to the specified torque.

      Torque:
      14 N*m  { 143 kgf*cm, 10 ft.*lbf }

  3. ADD ENGINE OIL


    1. Add fresh oil.

      Standard Engine Oil
      Item Oil Grade Oil Viscosity (SAE)
      w/ DPF

      ACEA C2

      (Using engine oil other than ACEA C2 may damage catalytic converter)

      - 0W-30

      - 5W-30

      (0W-30 is best choice for fuel economy and good starting in cold weather)
      w/o DPF

      G-DLD-1, API CF-4, API CF or ACEA B1

      (You may also use API CE or CD)

      - 5W-30

      - 10W-30

      - 15W-40

      - 20W-50

      (5W-30 is best choice for fuel economy and good starting in cold weather).
      Standard Capacity
      Item Specified Condition
      Drain and refill with oil filter change 9.2 liters (9.7 US qts, 8.1 Imp. qts)
      Drain and refill without oil filter change 8.2 liters (8.7 US qts, 7.2 Imp. qts)
      Dry fill 9.9 liters (10.5 US qts, 8.7 Imp. qts)

    2. Install the oil filler cap.

  4. INSPECT FOR ENGINE OIL LEAK


    1. Warm up the engine and check for an engine oil leak.

  5. CHECK ENGINE OIL LEVEL


    1. Warm up the engine, stop the engine and wait 5 minutes. The engine oil level should be between the dipstick low level mark and full level mark.

      If low, check for leakage and add oil up to the full level mark.

      Note

      Do not fill engine oil above the full level mark.

      Tech Tips

      A certain amount of engine oil will be consumed while driving. In the following situations, oil consumption may increase, and engine oil may need to be refilled in between oil maintenance intervals.


      • When the engine is new, for example directly after purchasing the vehicle or after replacing the engine.

      • If low quality oil or oil of an inappropriate viscosity is used.

      • When driving at high engine speed or with a heavy load, (when towing, or), when driving while accelerating or decelerating frequently.

      • When leaving the idling for a long time, or when driving frequently through heavy traffic.

      When judging the amount of oil consumption, keep in mind that the oil may have become diluted, making it difficult to judge the true level accurately.

  6. INSTALL NO. 2 ENGINE UNDER COVER


    1. Install the No. 2 engine under cover with the 2 bolts.

      Torque:
      29 N*m  { 296 kgf*cm, 21 ft.*lbf }

  7. INSTALL NO. 1 ENGINE UNDER COVER SUB-ASSEMBLY


    1. Install the No. 1 engine under cover with the 10 bolts.

      Torque:
      29 N*m  { 296 kgf*cm, 21 ft.*lbf }

  8. INSTALL FRONT FENDER SPLASH SHIELD SUB-ASSEMBLY RH


    1. Push in the clip to install the front fender splash shield sub-assembly RH.

    2. Install the 3 bolts and 2 screws.

  9. INSTALL FRONT FENDER SPLASH SHIELD SUB-ASSEMBLY LH


    1. Push in the clip to install the front fender splash shield sub-assembly LH.

    2. Install the 3 bolts and screw.

  10. INSTALL FRONT FENDER APRON SEAL REAR RH


    1. Install the front fender apron seal rear RH with the 4 clips.

  11. INSTALL FRONT FENDER APRON SEAL FRONT RH


    1. Install the front fender apron seal front RH with the 3 clips.

  12. INSTALL FRONT WHEEL RH

    Torque:
    for Aluminum Wheel
    131 N*m  { 1336 kgf*cm, 97 ft.*lbf }
    for Steel Wheel
    209 N*m  { 2131 kgf*cm, 154 ft.*lbf }
