REAR LIGHT ASSEMBLY REASSEMBLY


  1. INSTALL REAR COMBINATION LIGHT PROTECTOR


    1. A01G6NT

      Install 2 new rear combination light protectors.

  2. INSTALL REAR LIGHT GASKET


    1. A01G9HA

      Install a new rear light gasket.

  3. INSTALL REAR LIGHT SOCKET AND WIRE


    1. Connect the connector to install the rear light socket and wire.

  4. INSTALL NO. 1 REAR FOG LIGHT BULB (w/ Rear Fog Light)


    1. Install the No. 1 rear fog light bulb to the rear light socket and wire.

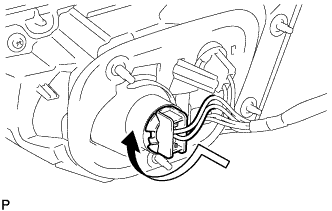

    2. A01G65G

      Turn the rear light socket and wire with the No. 1 rear fog light bulb in the direction indicated by the arrow shown in the illustration to install them as a unit.

  5. INSTALL BACK-UP LIGHT BULB


    1. Install the back-up light bulb to the rear light socket and wire.

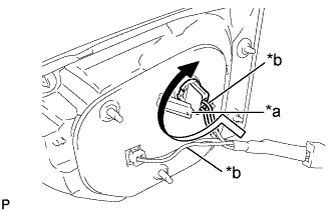

    2. A01G6S3E01
      Text in Illustration
      *a Connector Rib
      *b Wire

      Turn the rear light socket and wire with the back-up light bulb in the direction indicated by the arrow shown in the illustration to connect them as a unit.

      Note

      When connecting the rear light socket and wire with the back-up light bulb, make sure that the wire is not on the end of the connector rib.
