FRONT WIPER RUBBER REPLACEMENT

Tech Tips


  • Use the same procedure for both the RH and LH sides.

  • The procedure described below is for the LH side.


  1. REMOVE FRONT WIPER BLADE


    1. Pull up the holder of the front wiper blade.

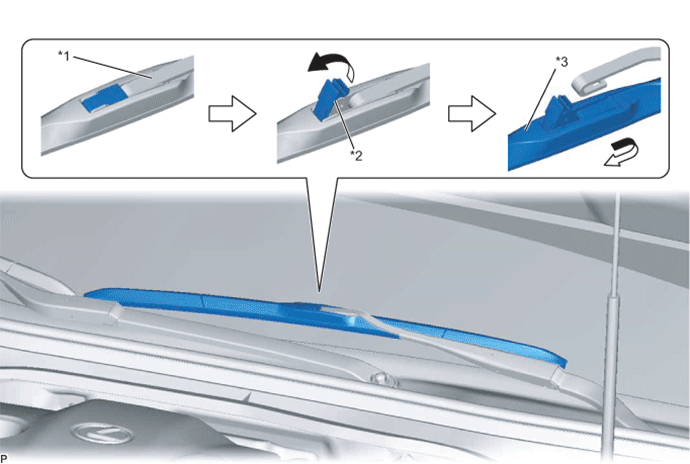

      A01G73LE01
      Text in Illustration
      *1 Front Wiper Arm *2 Holder
      *3 Front Wiper Blade - -

    2. Remove the front wiper blade from the front wiper arm as shown in the illustration.

      Note

      Do not lower the front wiper arm with the front wiper blade removed. The arm tip may damage the windshield surface.

  2. REMOVE WIPER RUBBER

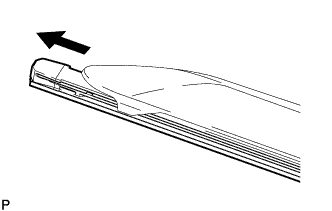

    1. A01G8J2

      Remove the wiper rubber with the front wiper rubber backing plates from the front wiper blade.

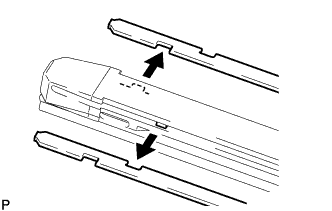

    2. A01G7FO

      Remove the 2 front wiper rubber backing plates from the wiper rubber.

  3. INSTALL WIPER RUBBER


    1. A01G7VY

      Install the 2 front wiper rubber backing plates to the wiper rubber.

      Note


      • Align the protrusions on the wiper rubber and the notches of the backing plates.

      • Align the curves of the backing plates and the glass.

    2. A01G4YX

      Install the wiper rubber with the front wiper rubber backing plates to the front wiper blade as shown in the illustration.

      Note

      Push the wiper rubber and front wiper backing plates into the front wiper blade strongly to engage them securely.

  4. INSTALL FRONT WIPER BLADE


    1. Install the front wiper blade as shown in the illustration.

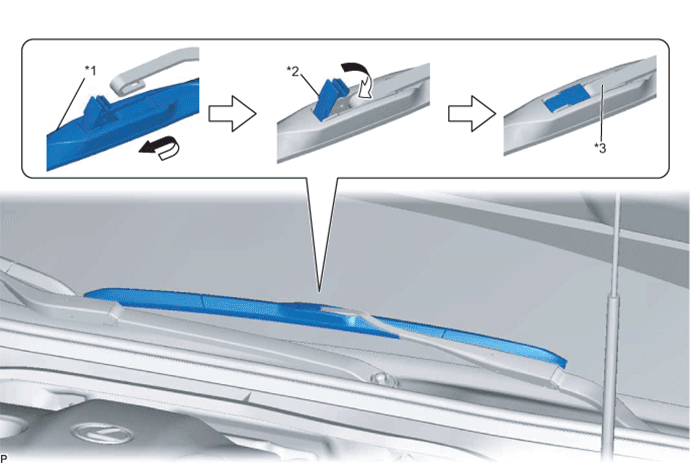

      A01G55OE01
      Text in Illustration
      *1 Front Wiper Blade *2 Holder
      *3 Front Wiper Arm - -
