NAVIGATION SYSTEM Steering Pad Switch Circuit

DESCRIPTION

This circuit sends an operation signal from the steering pad switch assembly to the multi-media module receiver assembly.

If there is an open in the circuit, the audio system cannot be operated using the steering pad switch assembly.

If there is a short in the circuit, the same condition as when a switch is continuously depressed occurs. Therefore, the multi-media module receiver assembly cannot be operated using the steering pad switch assembly, also the multi-media module receiver assembly itself will not function.

WIRING DIAGRAM

A01G6EPE11

INSPECTION PROCEDURE

Note

The vehicle is equipped with a Supplemental Restraint System (SRS) which includes components such as airbags. Before servicing (including removal or installation of parts), be sure to read the Precaution for Supplemental Restraint System Click here.

PROCEDURE


  1. CHECK HARNESS AND CONNECTOR (STEERING PAD SWITCH SIGNAL)


    1. Disconnect the H97 multi-media module receiver assembly connector.

    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance
      Tester Connection Switch Condition Specified Condition
      H97-30 (SW1) - H97-32 (SWG) No switch pushed 95 to 105 kΩ
      Seek+ switch pushed Below 2.5 Ω
      Seek- switch pushed 313 to 345 Ω
      Volume+ switch pushed 950 to 1050 Ω
      Volume- switch pushed 2955 to 3265 Ω
      H97-31 (SW2) - H97-32 (SWG) No switch pushed 95 to 105 kΩ
      MODE switch pushed Below 2.5 Ω
      On hook switch pushed 313 to 345 Ω
      Off hook switch pushed 950 to 1050 Ω
      Voice switch pushed 2955 to 3265 Ω
      Voice return switch pushed 313 to 345 Ω

    NG

    INSPECT STEERING PAD SWITCH ASSEMBLY Click here

    OK

    PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE Click here

  2. INSPECT STEERING PAD SWITCH ASSEMBLY


    1. Remove the steering pad switch assembly Click here.

    2. Measure the resistance according to the value(s) in the table below.

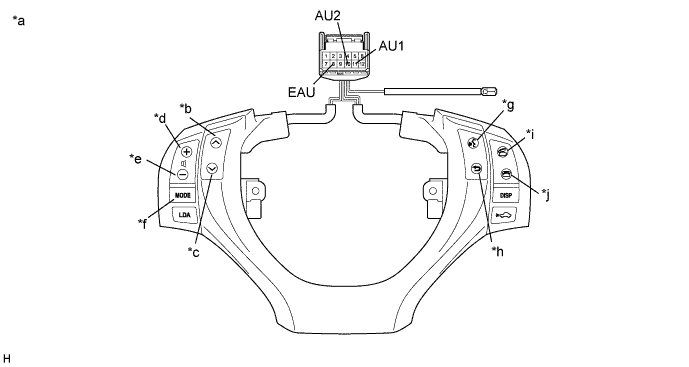

      A01G8OHE07
      Text in Illustration
      *a

      Component without harness connected

      (Steering Pad Switch Assembly)

      		 *b Seek+
      *c Seek- *d Volume+
      *e Volume- *f MODE
      *g Voice *h Voice return
      *i Off hook *j On hook
      Standard Resistance
      Tester Connection Switch Condition Specified Condition
      11 (AU1) - 8 (EAU) No switch pushed 95 to 105 kΩ
      Seek+ switch pushed Below 2.5 Ω
      Seek- switch pushed 313 to 345 Ω
      Volume+ switch pushed 950 to 1050 Ω
      Volume- switch pushed 2955 to 3265 Ω
      10 (AU2) - 8 (EAU) No switch pushed 95 to 105 kΩ
      MODE switch pushed Below 2.5 Ω
      On hook switch pushed 313 to 345 Ω
      Off hook switch pushed 950 to 1050 Ω
      Voice switch pushed 2955 to 3265 Ω
      Voice return switch pushed 313 to 345 Ω

    NG

    REPLACE STEERING PAD SWITCH ASSEMBLY Click here

    OK

  3. INSPECT SPIRAL CABLE WITH SENSOR SUB-ASSEMBLY


    1. Remove the spiral cable with sensor sub-assembly Click here.

    2. A01G59PE39
      Text in Illustration
      *a

      Component without harness connected

      (Spiral Cable with Sensor Sub-assembly)
      *b Steering Pad Switch Assembly Side
      *c Vehicle Side

      Measure the resistance according to the value(s) in the table below.

      Standard Resistance
      Tester Connection Condition Specified Condition
      z5-8 (EAU) - H22-3 (EAU) Center 3 Ω or less
      2.5 rotations to the left
      2.5 rotations to the right
      z5-11 (AU1) - H22-6 (AU1) Center 3 Ω or less
      2.5 rotations to the left
      2.5 rotations to the right
      z5-10 (AU2) - H22-5 (AU2) Center 3 Ω or less
      2.5 rotations to the left
      2.5 rotations to the right

    3. After setting the spiral cable with sensor sub-assembly to the center position, rotate the spiral cable with sensor sub-assembly 2.5 times clockwise. Then while rotating the spiral cable with sensor sub-assembly 5 times counterclockwise, measure the resistance according to the value(s) in the table below.

      Standard Resistance
      Tester Connection Condition Specified Condition
      z5-8 (EAU) - H22-3 (EAU) Always 3 Ω or less
      z5-11 (AU1) - H22-6 (AU1) Always 3 Ω or less
      z5-10 (AU2) - H22-5 (AU2) Always 3 Ω or less

      Note


      • Press and hold the lock located in the center of the spiral cable with sensor sub-assembly to rotate the spiral cable with sensor sub-assembly.

      • The spiral cable with sensor sub-assembly is an important part of the SRS airbag system. Incorrect removal or installation of the spiral cable with sensor sub-assembly may prevent the airbag from deploying.

      • As the spiral cable with sensor sub-assembly may break, do not rotate the spiral cable with sensor sub-assembly more than the specified amount.


    NG

    REPLACE SPIRAL CABLE WITH SENSOR SUB-ASSEMBLY Click here

    OK

    REPAIR OR REPLACE HARNESS OR CONNECTOR (MULTI-MEDIA MODULE RECEIVER ASSEMBLY - SPIRAL CABLE WITH SENSOR SUB-ASSEMBLY)
