NAVIGATION SYSTEM, Diagnostic DTC:B1579

DTC Code DTC Name
B1579 Voice Recognition Microphone Disconnected

DESCRIPTION

The multi-media module receiver assembly and roof console box assembly (telephone microphone assembly) are connected to each other using the microphone connection detection signal lines.

This DTC is stored when a microphone connection detection signal line is disconnected.

DTC No. DTC Detection Condition Trouble Area
B1579 Telephone microphone signal is lost.

  • Roof console box assembly

  • Telephone microphone assembly

  • Telematics transceiver*1

  • Multi-media module receiver assembly

  • Harness or connector

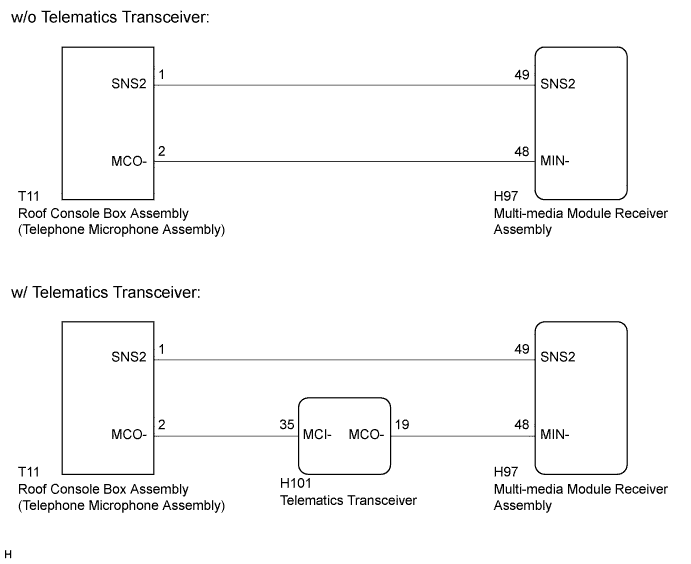

WIRING DIAGRAM

A01G5P2E10

INSPECTION PROCEDURE

Note

Depending on the parts that are replaced during vehicle inspection or maintenance, performing initialization, registration or calibration may be needed. Refer to Precautions for Navigation System Click here.

PROCEDURE


  1. INSPECT MULTI-MEDIA MODULE RECEIVER ASSEMBLY


    1. A01G5P0E20
      Text in Illustration
      *a

      Component with harness connected

      (Multi-media Module Receiver Assembly)

      Measure the resistance according to the value(s) in the table below.

      Standard Resistance
      Tester Connection Condition Specified Condition
      H97-48 (MIN-) - Body ground Always Below 1 Ω

    NG

    REPLACE MULTI-MEDIA MODULE RECEIVER ASSEMBLY Click here

    OK

  2. CONFIRM MODEL


    1. Choose the model to be inspected.

      Result
      Model Proceed to
      w/ Telematics Transceiver A
      w/o Telematics Transceiver B

    B

    CHECK HARNESS AND CONNECTOR (MULTI-MEDIA MODULE RECEIVER ASSEMBLY - ROOF CONSOLE BOX ASSEMBLY (TELEPHONE MICROPHONE ASSEMBLY)) Click here

    A

  3. CHECK HARNESS AND CONNECTOR (TELEMATICS TRANSCEIVER - ROOF CONSOLE BOX ASSEMBLY (TELEPHONE MICROPHONE ASSEMBLY))


    1. Disconnect the H101 telematics transceiver connector.

    2. Disconnect the T11 roof console box assembly (telephone microphone assembly) connector.

    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance
      Tester Connection Condition Specified Condition
      H101-35 (MCI-) - T11-2 (MCO-) Always Below 1 Ω
      H101-35 (MCI-) - Body ground Always 10 kΩ or higher

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK

  4. CHECK HARNESS AND CONNECTOR (MULTI-MEDIA MODULE RECEIVER ASSEMBLY - TELEMATICS TRANSCEIVER)


    1. Disconnect the H97 multi-media module receiver assembly connector.

    2. Disconnect the H101 telematics transceiver connector.

    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance
      Tester Connection Condition Specified Condition
      H97-48 (MIN-) - H101-19 (MCO-) Always Below 1 Ω
      H97-48 (MIN-) - Body ground Always 10 kΩ or higher

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK

  5. CHECK HARNESS AND CONNECTOR (MULTI-MEDIA MODULE RECEIVER ASSEMBLY - ROOF CONSOLE BOX ASSEMBLY (TELEPHONE MICROPHONE ASSEMBLY))


    1. Disconnect the H97 multi-media module receiver assembly connector.

    2. Disconnect the T11 roof console box assembly (telephone microphone assembly) connector.

    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance
      Tester Connection Condition Specified Condition
      H97-49 (SNS2) - T11-1 (SNS2) Always Below 1 Ω
      H97-49 (SNS2) - Body ground Always 10 kΩ or higher

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK

  6. INSPECT TELEMATICS TRANSCEIVER


    1. Reconnect the H101 telematics transceiver connector.

    2. Reconnect the H97 multi-media module receiver assembly connector.

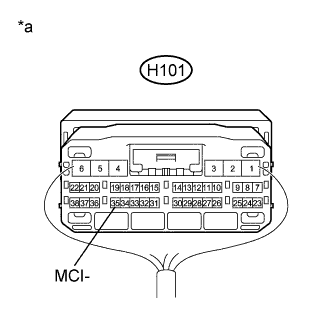

    3. A01G5VRE02
      Text in Illustration
      *a

      Component with harness connected

      (Telematics Transceiver)

      Measure the resistance according to the value(s) in the table below.

      Standard Resistance
      Tester Connection Condition Specified Condition
      H101-35 (MCI-) - Body ground Always Below 1 Ω

    4. Proceed to the next step based on the inspection result.

      Result
      Result Proceed to
      NG A
      OK B

    B

    INSPECT ROOF CONSOLE BOX ASSEMBLY (TELEPHONE MICROPHONE ASSEMBLY) Click here

    A

    REPLACE TELEMATICS TRANSCEIVER Click here

  7. CHECK HARNESS AND CONNECTOR (MULTI-MEDIA MODULE RECEIVER ASSEMBLY - ROOF CONSOLE BOX ASSEMBLY (TELEPHONE MICROPHONE ASSEMBLY))


    1. Disconnect the H97 multi-media module receiver assembly connector.

    2. Disconnect the T11 roof console box assembly (telephone microphone assembly) connector.

    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance
      Tester Connection Condition Specified Condition
      H97-48 (MIN-) - T11-2 (MCO-) Always Below 1 Ω
      H97-49 (SNS2) - T11-1 (SNS2) Always Below 1 Ω
      H97-48 (MIN-) - Body ground Always 10 kΩ or higher
      H97-49 (SNS2) - Body ground Always 10 kΩ or higher

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK

  8. INSPECT ROOF CONSOLE BOX ASSEMBLY (TELEPHONE MICROPHONE ASSEMBLY)


    1. Disconnect the T11 roof console box assembly (telephone microphone assembly) connector.

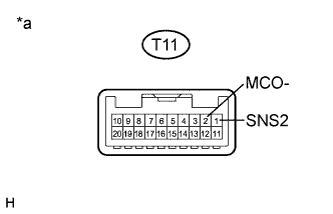

    2. A01G5WXE49
      Text in Illustration
      *a

      Component without harness connected

      (Roof Console Box Assembly (Telephone Microphone Assembly))

      Measure the resistance according to the value(s) in the table below.

      Standard Resistance
      Tester Connection Condition Specified Condition
      T11-2 (MCO-) - T11-1 (SNS2) Always Below 1 Ω

    NG

    REPLACE TELEPHONE MICROPHONE ASSEMBLY Click here

    OK

    REPLACE MULTI-MEDIA MODULE RECEIVER ASSEMBLY Click here

  9. REPLACE TELEPHONE MICROPHONE ASSEMBLY


    1. Replace the telephone microphone assembly Click here.

    2. Clear the DTCs Click here.

    3. Recheck for DTCs and check that no DTCs are output.

      OK
      No DTCs are output.

    NG

    REPLACE ROOF CONSOLE BOX ASSEMBLY Click here

    OK

    END
