DIFFERENTIAL CASE REASSEMBLY

INSTALL DIFFERENTIAL SIDE GEAR
1. Coat the 2 differential side gears, 2 No. 1 front differential side gear thrust washers, 2 front differential pinions and 2 front differential pinion thrust washers with ATF and install them to the differential case.
INSTALL FRONT NO. 1 DIFFERENTIAL PINION SHAFT
1. Coat the front No. 1 differential pinion shaft with ATF and install it to the differential case.

INSPECT DIFFERENTIAL SIDE GEAR BACKLASH

Hold the differential case in a vise between aluminum plates.

Note

Do not overtighten the vise.
Place a dial indicator on the tip of the side gear tooth at a right angle.

Hold the pinion gear in the differential case and measure the backlash of the side gear.

Standard backlash
0.05 to 0.2 mm (0.00197 to 0.00787 in.)

No. 1 Front Differential Thrust Washer Thickness
Thickness [mm (in.)]
1.00 (0.0394)
1.10 (0.0433)
1.20 (0.0472)
1.30 (0.0512)

If the backlash is greater than the standard range, select another side gear thrust washer.

INSTALL FRONT DIFFERENTIAL PINION SHAFT STRAIGHT PIN
1. Using a 5 mm pin punch and hammer, install the front differential pinion shaft straight pin.

  Note

  Align the holes, and install the front differential pinion shaft straight pin.
2. Using a chisel and hammer, stake the differential case.

  Note

  Stake the differential case after adjusting the backlash.
INSTALL FRONT DIFFERENTIAL CASE REAR TAPERED ROLLER BEARING
1. Using SST and a press, install a new front differential case rear tapered roller bearing to the differential case.

  SST

  09710-30012   ( 09710-04081 )

  09950-60010   ( 09951-00480 )

  09950-70010   ( 09951-07100 )

  Note

  Do not damage the bearing cage when installing the front differential case rear tapered roller bearing.
2. Using SST and a hammer, install a new front differential case rear tapered roller bearing (outer race) to the transaxle case sub-assembly.

  SST

  09950-60020 ( 09951-00810 )

  09950-70010 ( 09951-07150 )

  Note

  Ensure that there is no clearance between the front differential case rear tapered roller bearing (outer race) and transaxle case sub-assembly.
INSTALL FRONT DIFFERENTIAL CASE FRONT TAPERED ROLLER BEARING
1. Using SST and a press, install a new front differential case front tapered roller bearing to the differential case.

  SST

  09523-36010

  09950-60010 ( 09951-00540 )

  09950-70010 ( 09951-07100 )

  Note

  Do not damage the bearing cage when installing the front differential case front tapered roller bearing.
2. Install the shim to the transaxle housing.
3. Using SST and a hammer, install a new front differential case front tapered roller bearing (outer race) to the transaxle housing.

  SST

  09950-60020 ( 09951-00790 )

  09950-70010 ( 09951-07150 )

  Note

  Ensure that there is no clearance between the front differential case front tapered roller bearing (outer race) and transaxle housing.

ADJUST DIFFERENTIAL SIDE BEARING PRELOAD

Remove remaining seal packing from the contact surfaces of the transaxle housing and transaxle case sub-assembly.
Install the differential assembly to the transaxle case sub-assembly.
Install the transaxle housing to the transaxle case sub-assembly with the 20 bolts.

Torque:

Bolt A

23 N*m { 231 kgf*cm, 17 ft.*lbf }

except Bolt A

31 N*m { 312 kgf*cm, 23 ft.*lbf }

Using SST and a torque wrench, measure the turning torque of the differential side bearing while rotating SST at 10 rpm.

SST: 09564-33010

Turning Torque
1.29 to 1.71 Nm (13 to 17 kgfcm, 11 to 15 in.*lbf)

If the turning torque is not within the specified range, refer to the table below to select a shim so that the turning torque is within the specified range.

Shim Thickness: mm (in.)
Thickness	Thickness	Thickness	Thickness
2.000 (0.0787)	2.225 (0.0876)	2.450 (0.0965)	2.675 (0.105)
2.025 (0.0797)	2.250 (0.0886)	2.475 (0.0974)	2.700 (0.106)
2.050 (0.0807)	2.275 (0.0896)	2.500 (0.0984)	2.725 (0.107)
2.075 (0.0817)	2.300 (0.0906)	2.525 (0.0994)	2.750 (0.108)
2.100 (0.0827)	2.325 (0.0915)	2.550 (0.100)	2.775 (0.109)
2.125 (0.0837)	2.350 (0.0925)	2.575 (0.101)	2.800 (0.110)
2.150 (0.0846)	2.375 (0.0935)	2.600 (0.102)	2.825 (0.111)
2.175 (0.0856)	2.400 (0.0945)	2.625 (0.103)	2.850 (0.112)
2.200 (0.0866)	2.425 (0.0955)	2.650 (0.104)	2.875 (0.113)

Remove the 20 bolts and the transaxle housing from the transaxle case sub-assembly.
Remove the differential case from the transaxle case sub-assembly.

INSTALL FRONT DIFFERENTIAL RING GEAR

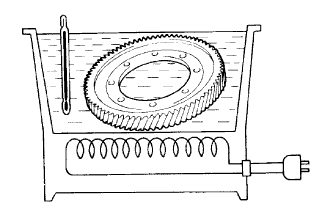

1. Using ATF and a heater, heat the front differential ring gear to 90 to 110°C (194 to 230°F).

  Note

  Do not heat the front differential ring gear to more than 110°C (230°F).
2. Clean the contact surface of the differential case.
3. Align the matchmarks and set the front differential ring gear to the differential case.

  Text in Illustration

  *a Matchmark
4. Install the 12 bolts to the front differential ring gear.

  Torque:

  120 N*m { 1224 kgf*cm, 89 ft.*lbf }
  Note

  Tighten the bolts after the front differential ring gear has cooled down sufficiently.

  Tighten the bolts evenly in a diagonal pattern using several steps.
INSTALL TRANSAXLE CASE OIL SEAL
1. Coat the lip of a new transaxle case oil seal with a small amount of MP grease.
2. Using SST and a hammer, install the transaxle case oil seal.

  SST

  09316-10010

  09950-70010 ( 09951-07100 )

  Standard Depth

  -0.5 to 0.5 mm (-0.0197 to 0.0197 in.)

  Note

  Check that the transaxle case oil seal is installed in the correct direction.
INSTALL FRONT TRANSAXLE CASE OIL SEAL
1. Coat the lip of a new front transaxle case oil seal with a small amount of MP grease.
2. Using SST and a hammer, install the front transaxle case oil seal.

  SST

  09308-14010

  Standard Depth

  -0.5 to 0.5 mm (-0.0197 to 0.0197 in.)

  Note

  Check that the front transaxle case oil seal is installed in the correct direction.
