OIL LEVEL SENSOR REMOVAL


  1. REMOVE FRONT WHEEL RH

  2. REMOVE FRONT WHEEL OPENING EXTENSION PAD RH

  3. REMOVE ENGINE UNDER COVER RH

  4. REMOVE FRONT FENDER APRON SEAL RH

  5. DRAIN ENGINE OIL


    1. Remove the oil filler cap.

    2. Remove the oil pan drain plug and gasket, and drain the engine oil into a container.

    3. Clean the oil pan drain plug.

    4. Install the oil pan drain plug with a new gasket.

      Torque:
      40 N*m  { 408 kgf*cm, 30 ft.*lbf }

  6. REMOVE ENGINE OIL LEVEL SENSOR

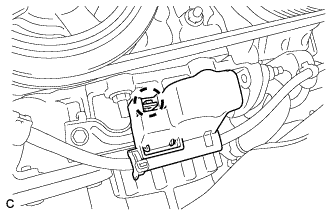

    1. A01G8NC

      Disconnect the wire harness protector. (w/ Oil Cooler)

    2. Disconnect the engine oil pressure switch connector. (w/ Oil Cooler)

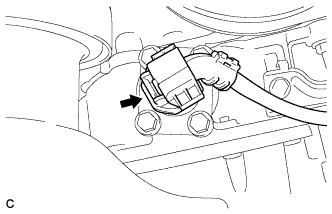

    3. A01G7NA

      Disconnect the engine oil level sensor connector.

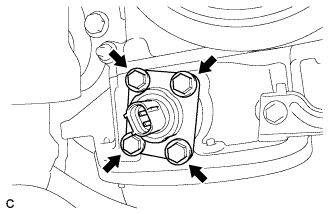

    4. A01G883

      Remove the 4 bolts, engine oil level sensor and gasket.
