COOLING FAN MOTOR ON-VEHICLE INSPECTION


  1. CHECK COOLING FAN MOTOR


    1. A01G5B0E01
      Text in Illustration
      *a Code Mark

      Check the code mark on the fan shroud.

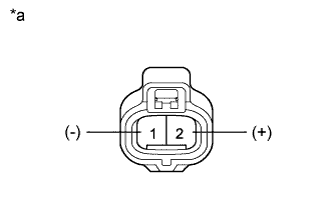

    2. A01G4XJE01
      Text in Illustration
      *a

      Component without harness connected

      (Cooling Fan Motor)

      Check that the motor operates smoothly when the battery is connected to the fan motor connector.

    3. Measure the current while the motor is operating.

      Standard Current
      Item Condition Specified Condition

      Cooling fan motor

      (Code Mark I and V)

      		 Battery voltage applied at 20°C (68°F) 5.6 to 11.6 A

      Cooling fan motor

      (Code Mark W)

      		 Battery voltage applied at 20°C (68°F) 10.6 to 16.6 A

      If the result is not as specified, replace the cooling fan motor.

  2. CHECK NO. 2 COOLING FAN MOTOR


    1. A01G5B0E01
      Text in Illustration
      *a Code Mark

      Check the code mark on the fan shroud.

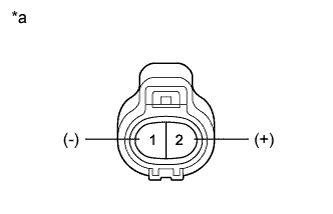

    2. A01G839E01
      Text in Illustration
      *a

      Component without harness connected

      (No. 2 Cooling Fan Motor)

      Check that the motor operates smoothly when the battery is connected to the fan motor connector.

    3. Measure the current while the motor is operating.

      Standard Current
      Item Condition Specified Condition

      Cooling fan motor

      (Code Mark I and V)

      		 Battery voltage applied at 20°C (68°F) 5.6 to 11.6 A

      Cooling fan motor

      (Code Mark W)

      		 Battery voltage applied at 20°C (68°F) 5.6 to 11.6 A

      If the result is not as specified, replace the No. 2 cooling fan motor.
