POWER OUTLET SOCKET INSTALLATION


  1. INSTALL NO. 1 POWER OUTLET SOCKET COVER


    1. Engage the 2 claws to install the No. 1 power outlet socket cover.

  2. INSTALL NO. 1 POWER OUTLET SOCKET ASSEMBLY

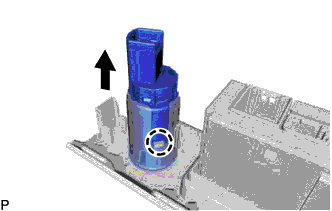

    1. A01G67H

      Engage the claw to install the No. 1 power outlet socket assembly as shown in the illustration.

  3. INSTALL NO. 3 BOX PANEL


    1. Connect each connector.

    2. A01G9NI

      Engage the 3 guides and 4 claws to install the No. 3 box panel as shown in the illustration.

  4. INSTALL UPPER CONSOLE PANEL SUB-ASSEMBLY


    1. Connect the connector.

    2. Engage the 10 claws and clip to install the upper console panel sub-assembly.

  5. INSTALL CONSOLE PANEL SUB-ASSEMBLY


    1. Connect each connector.

    2. Engage the clamp.

    3. Engage the 7 claws and 4 clips to install the console panel sub-assembly.

    4. Move the shift lever to P.

  6. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY


    1. A01G8LX

      Turn the shift lever knob sub-assembly clockwise to install it.

  7. INSTALL LOWER CENTER INSTRUMENT PANEL FINISH PANEL


    1. A01G96C

      Engage the 2 claws and 5 clips to install the lower center instrument panel finish panel as shown in the illustration.
