ROOM TEMPERATURE SENSOR REMOVAL


  1. PRECAUTION

    Note

    After turning the engine switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) battery terminal notices before proceeding with work Click here.

  2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

    Note

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected Click here.

  3. REMOVE LOWER CENTER INSTRUMENT PANEL FINISH PANEL


    1. A01G7SVE01
      Text in Illustration
      *a Lower Center Instrument Panel Finish Panel Hole

      Insert a moulding remover as shown in the illustration.

    2. A01G5J0

      Disengage the 2 claws and 5 clips and remove the lower center instrument panel finish panel as shown in the illustration.

  4. REMOVE FRONT DOOR SCUFF PLATE LH


    1. A01G8TA

      Disengage the 10 claws and remove the front door scuff plate LH.

  5. REMOVE COWL SIDE TRIM BOARD LH


    1. A01G75T

      Remove the clip.

    2. Disengage the claw and clip, and remove the cowl side trim board LH.

  6. REMOVE FRONT DOOR OPENING TRIM COVER LH


    1. A01G9KP

      Disengage the 3 claws.

    2. Disengage the guide and remove the front door opening trim cover LH.

  7. REMOVE INSTRUMENT SIDE PANEL LH


    1. A01G5PZ

      Using a moulding remover, disengage the 2 claws and 4 clips as shown in the illustration.

    2. A01G64E

      Disengage the 2 guides and remove the instrument side panel LH as shown in the illustration.

  8. DISCONNECT HOOD LOCK CONTROL LEVER SUB-ASSEMBLY


    1. A01G4MG

      Disengage the claw and 2 guides to disconnect the hood lock control lever sub-assembly.

  9. REMOVE LOWER NO. 1 INSTRUMENT PANEL FINISH PANEL


    1. A01G78A

      Remove the 2 bolts <B>.

    2. A01G4U5

      Disengage the 12 claws, 2 clips and guide.

    3. Disconnect each connector to remove the lower No. 1 instrument panel finish panel.

  10. REMOVE INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY


    1. A01G60Y

      Remove the 2 screws <E>.

    2. A01G9M6E01
      Text in Illustration
      *1 Protective Tape

      Apply protective tape to the area shown in the illustration.

    3. A01G6EW

      Using a moulding remover, disengage the 5 claws and 2 guides as shown in the illustration.

    4. Disconnect the connector to remove the instrument cluster finish panel sub-assembly.

  11. REMOVE SWITCH BASE


    1. A01G4JI

      Disengage the 3 claws.

    2. Disconnect the connector to remove the switch base.

  12. REMOVE COOLER (ROOM TEMP. SENSOR) THERMISTOR

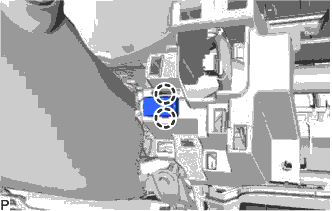

    1. A01G81W

      Disengage the 2 claws.

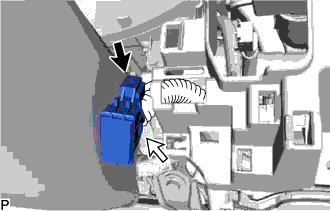

    2. A01G93M

      Disconnect the connector and cooler thermistor hose, and remove the cooler (room temp. sensor) thermistor.
