FRONT SEAT ASSEMBLY COMPONENTS

ILLUSTRATION

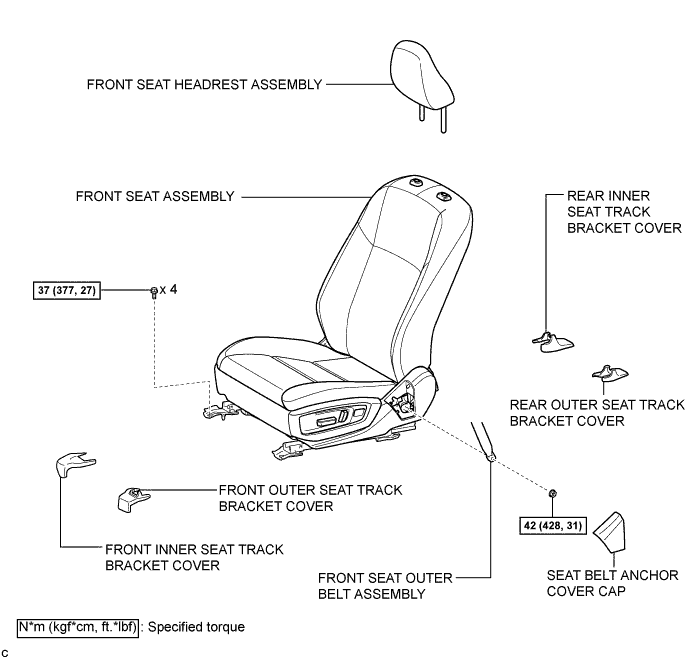

A01G7RPE01

ILLUSTRATION

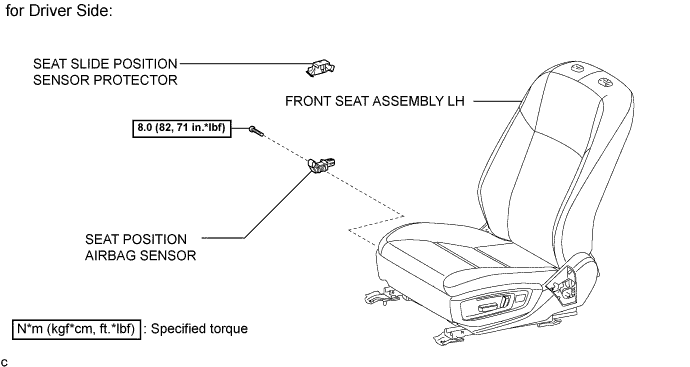

A01G8XAE02

ILLUSTRATION

A01G8FWE02

ILLUSTRATION

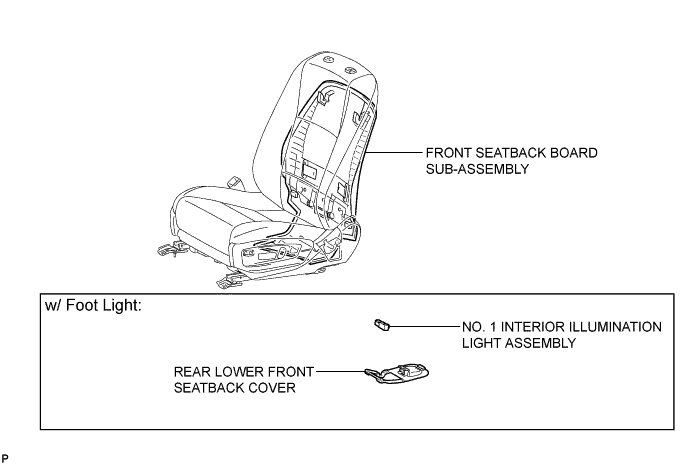

A01G5OVE02

ILLUSTRATION

A01G6SBE01

ILLUSTRATION

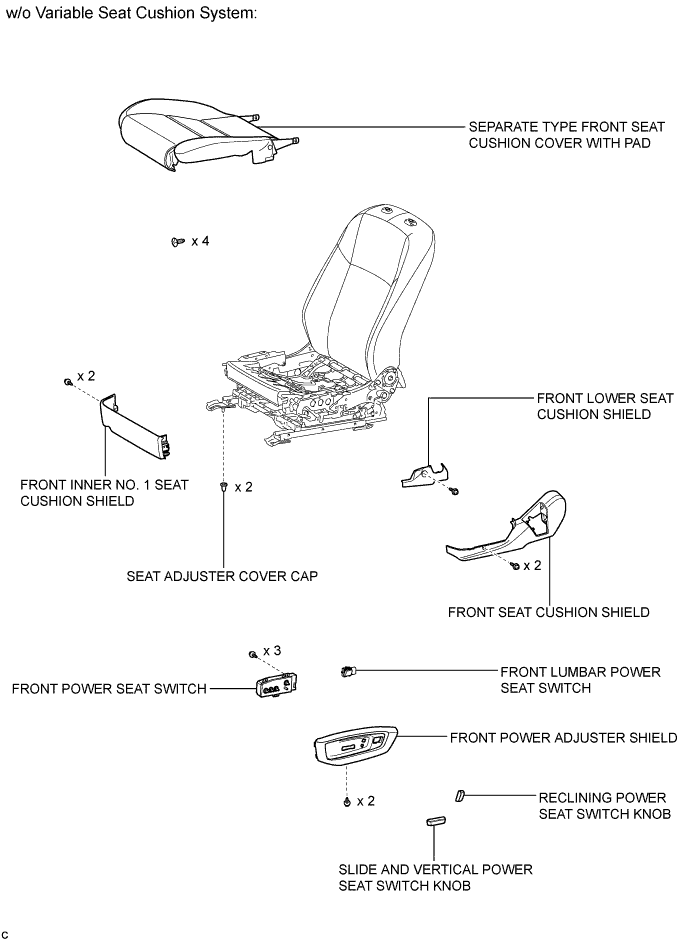

A01G60SE01

ILLUSTRATION

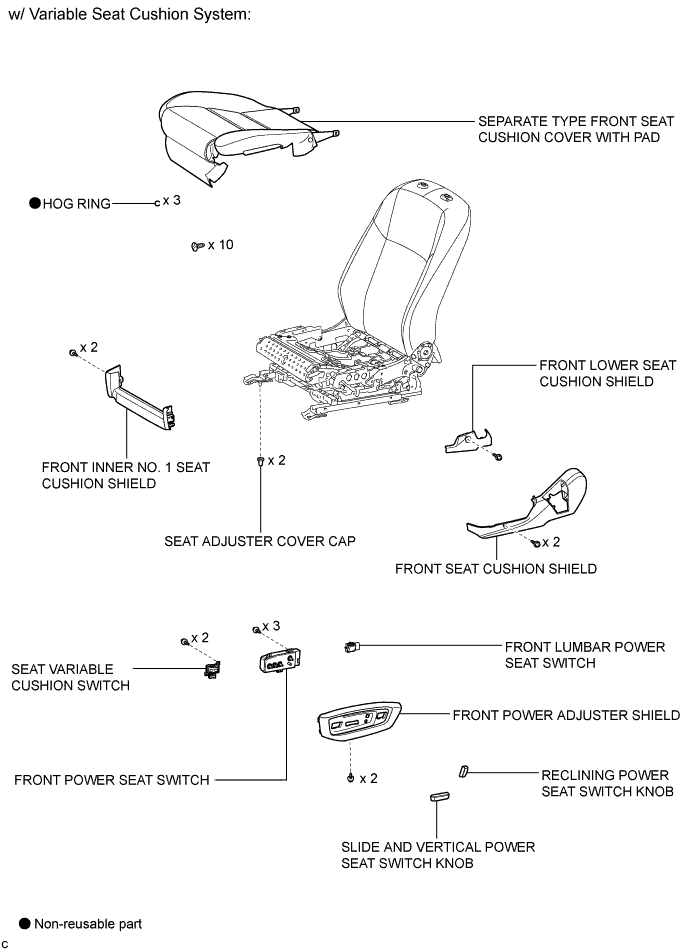

A01G7N8E01

ILLUSTRATION

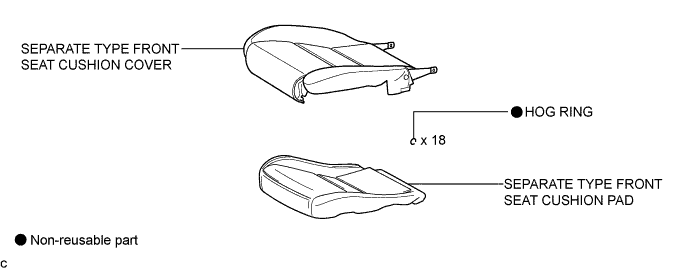

A01G8ADE01

ILLUSTRATION

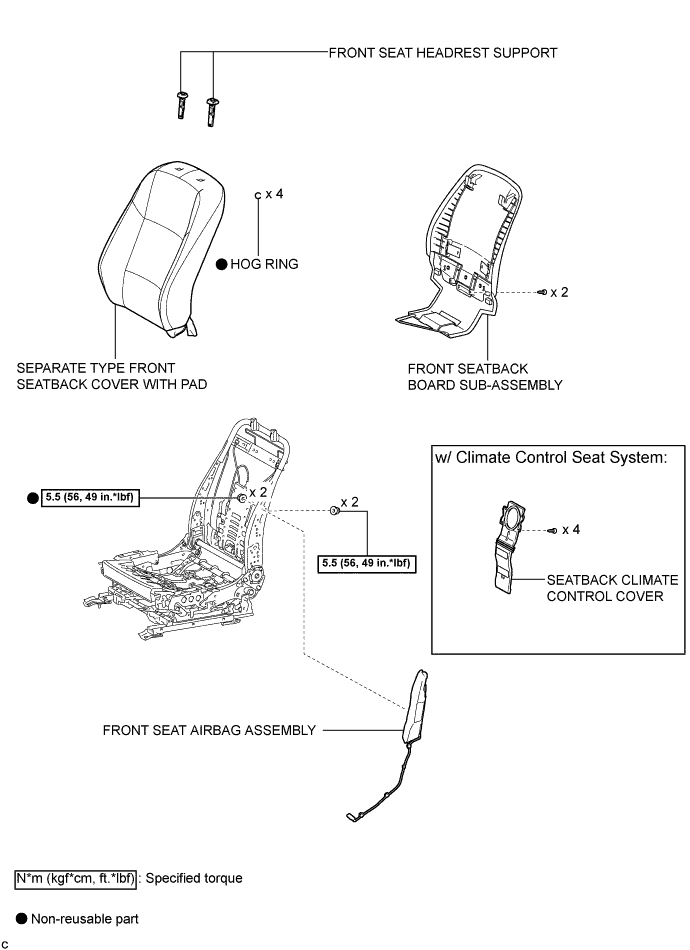

A01G8O2E01

ILLUSTRATION

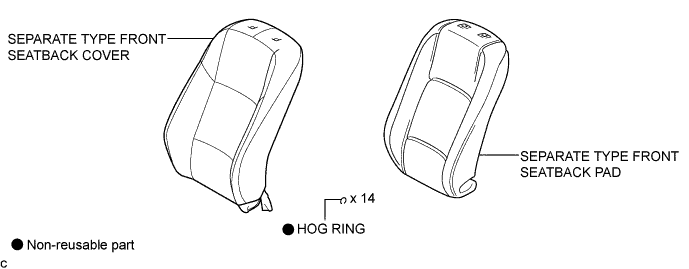

A01G9R4E01

ILLUSTRATION

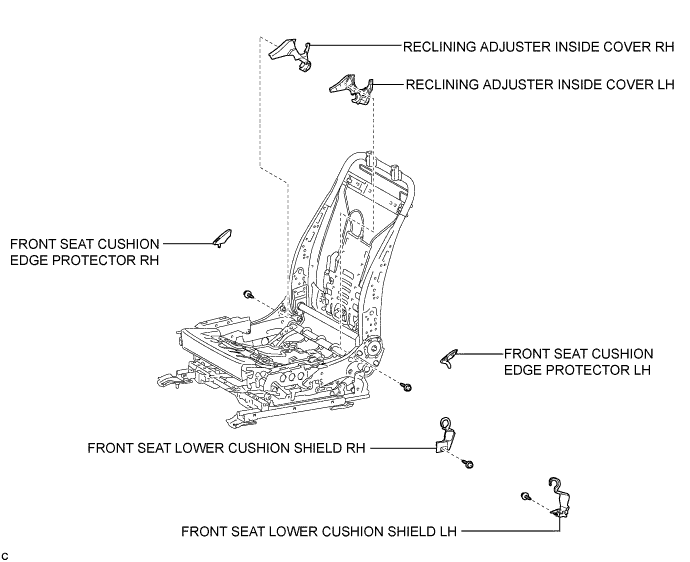

A01G9CNE01

ILLUSTRATION

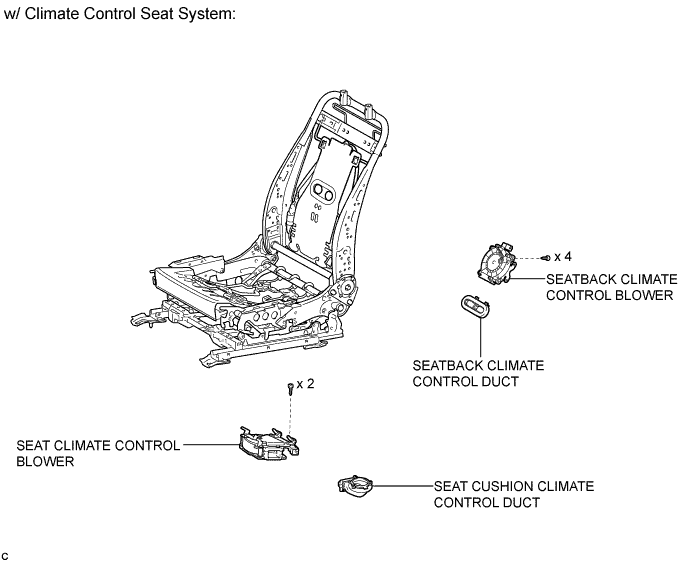

A01G4VTE01

ILLUSTRATION

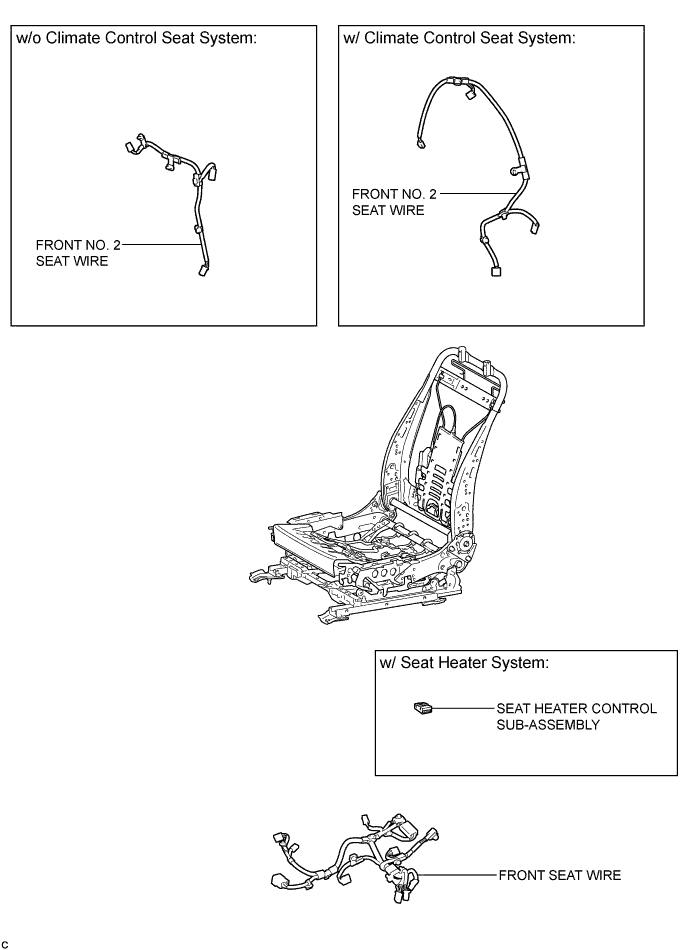

A01G9HFE01

ILLUSTRATION

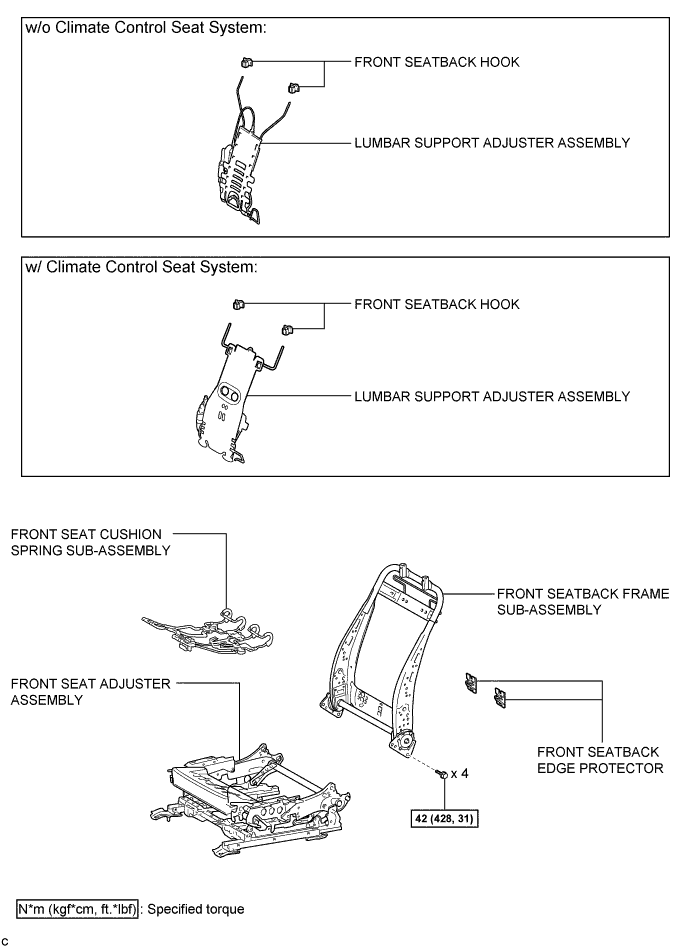

A01G7D6E01
