FRONT POWER SEAT CONTROL SYSTEM (w/o Memory) PARTS LOCATION

ILLUSTRATION

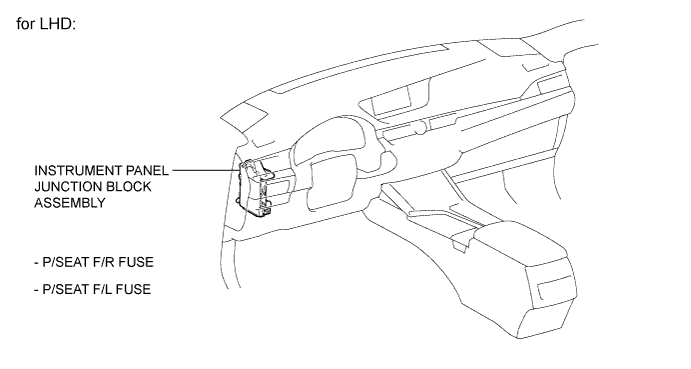

A01G70HE03

ILLUSTRATION

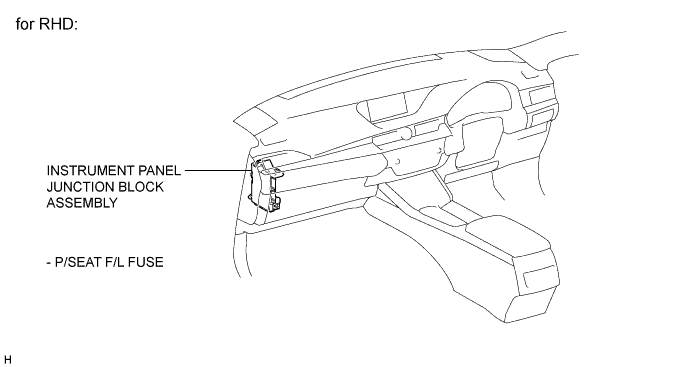

A01G48PE01

ILLUSTRATION

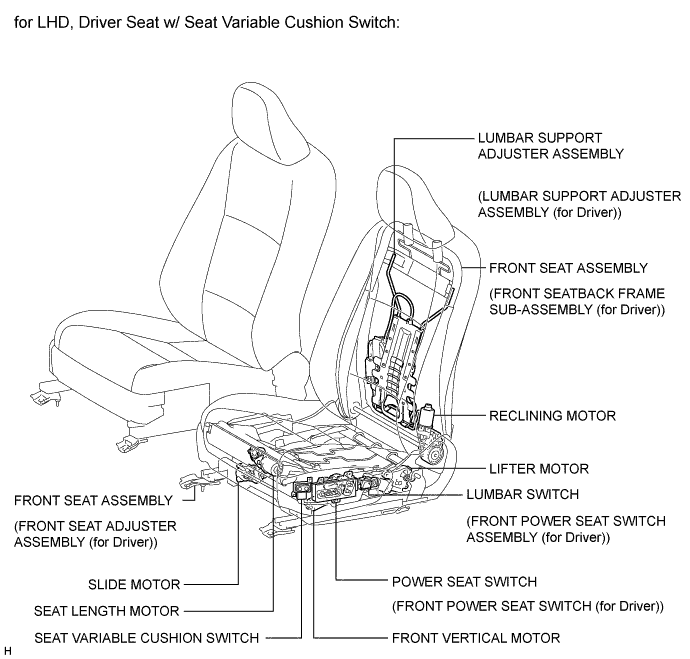

A01G963E05

ILLUSTRATION

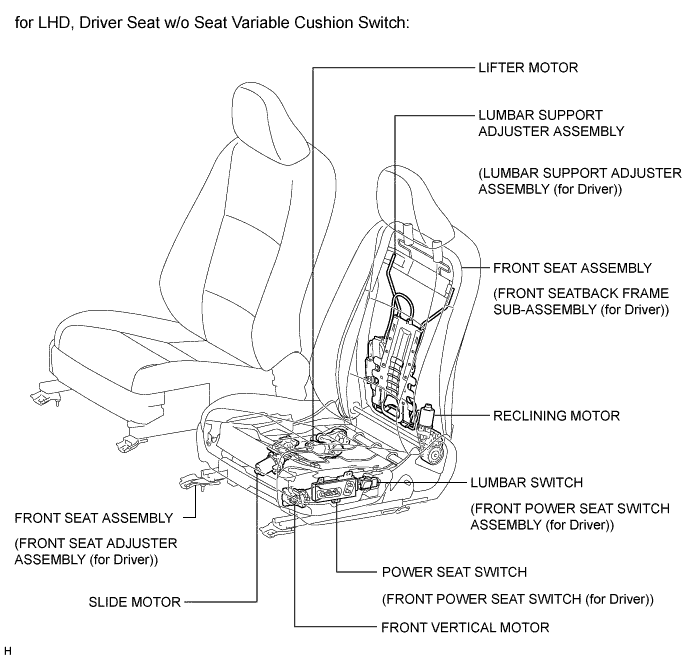

A01G8CTE07

ILLUSTRATION

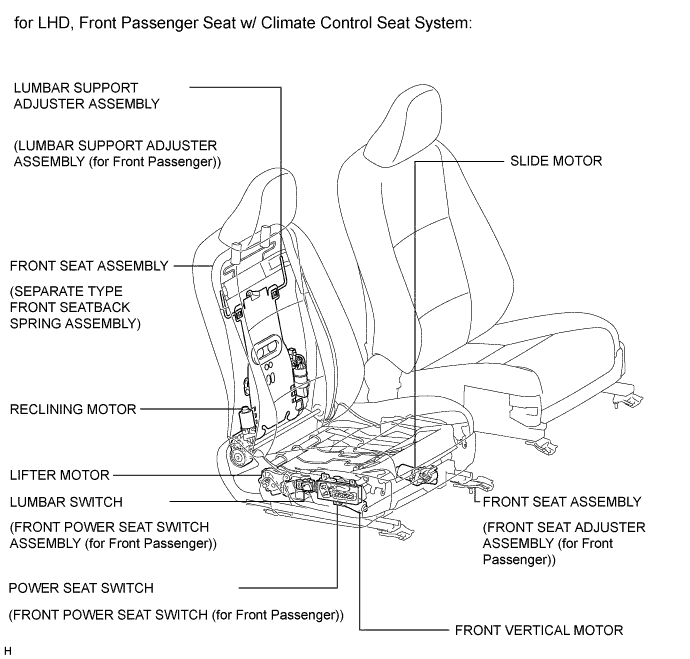

A01G6LYE12

ILLUSTRATION

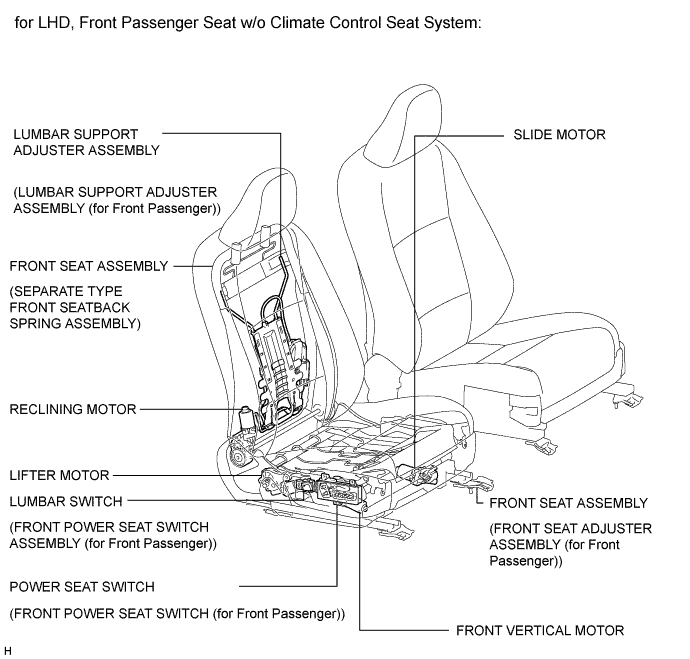

A01G6UOE06

ILLUSTRATION

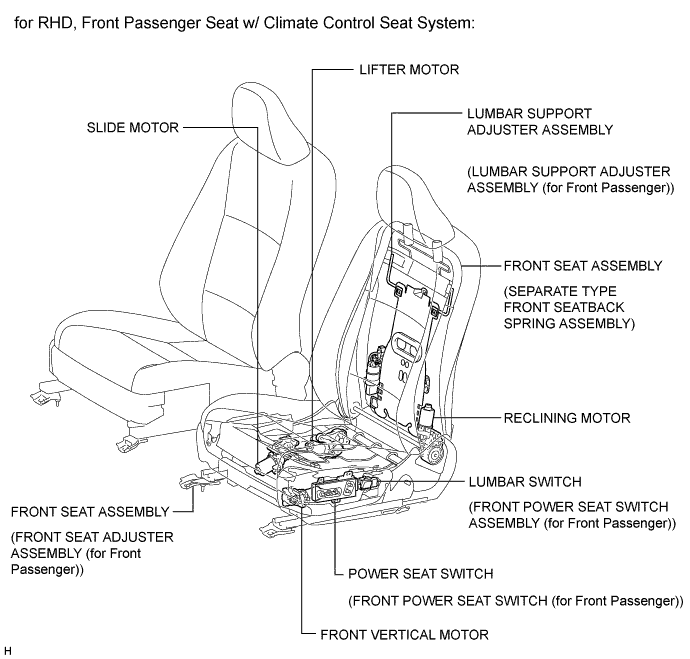

A01G7H4E02

ILLUSTRATION

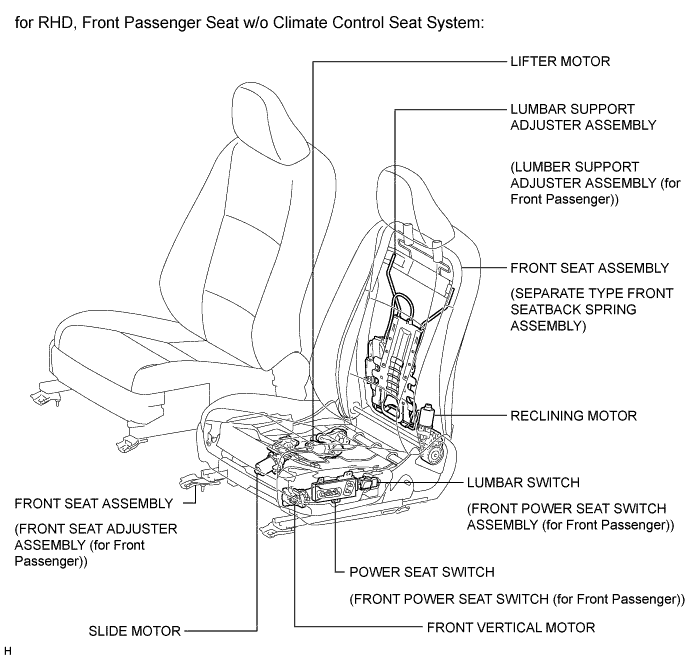

A01G8CTE08
