OUTER REAR VIEW MIRROR INSTALLATION

Click here
Click here

CAUTION / NOTICE / HINT

Tip:

  • Use the same procedure for the LH side and RH side.

  • The following procedure is for the LH side.

Click here

PROCEDURE


  1. Click here

    INSTALL OUTER REAR VIEW MIRROR ASSEMBLY


    1. Engage the clamp to temporarily install the outer rear view mirror assembly.

    2. Install the outer rear view mirror assembly with the 3 nuts.

      5.5 N*m 56 kgf*cm 49 in.*lbf
  2. Click here

    INSTALL OUTER MIRROR INSTALL HOLE COVER

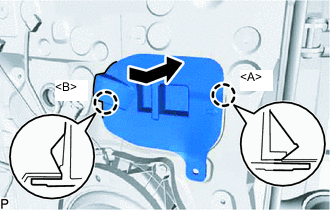

    1. A00088HE01

      Engage the claw<A> as shown in the illustration.

    2. Engage the claw<B> as shown in the illustration.

    3. Install the outer mirror install hole cover with the screw.

    4. w/o Memory:


      1. Connect the connector.

  3. Click here

    INSTALL OUTER MIRROR PROTECTOR

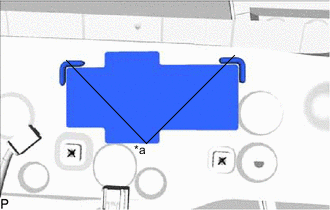

    1. A0005Z7E01

      Install a new outer mirror protector while aligning it to the reference points on the front door panel.

      Table 1. Text in Illustration
      *a Reference Point
  4. Click here

    INSTALL OUTER MIRROR CONTROL ECU ASSEMBLY (w/ Memory)

    Click here

  5. Click here

    INSTALL FRONT DOOR INNER GLASS WEATHERSTRIP

    Click here

  6. Click here

    INSTALL FRONT DOOR TRIM BOARD SUB-ASSEMBLY

    Click here

  7. Click here

    INSTALL FRONT DOOR NO. 1 STIFFENER CUSHION

    Click here

  8. Click here

    INSTALL COURTESY LIGHT ASSEMBLY

    Click here

  9. Click here

    INSTALL DOOR PULL HANDLE COVER

    Click here

  10. Click here

    INSTALL MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY WITH FRONT DOOR ARMREST BASE PANEL (for Driver Side)

    Click here

  11. Click here

    INSTALL POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH FRONT DOOR ARMREST BASE PANEL (for Front Passenger Side)

    Click here

  12. Click here

    INSTALL FRONT DOOR INSIDE HANDLE BEZEL PLUG

    Click here

  13. Click here

    CONNECT CABLE TO NEGATIVE AUXILIARY BATTERY TERMINAL

    Note:

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected (Click here).

  14. Click here

    INSTALL LUGGAGE TRIM SERVICE HOLE COVER

    Click here

  15. Click here

    INITIALIZE POWER WINDOW CONTROL SYSTEM

    (Click here)

  16. Click here

    INSPECT POWER WINDOW OPERATION

    (Click here)
