LUGGAGE COMPARTMENT DOOR CLOSER SYSTEM PARTS LOCATION
ILLUSTRATION

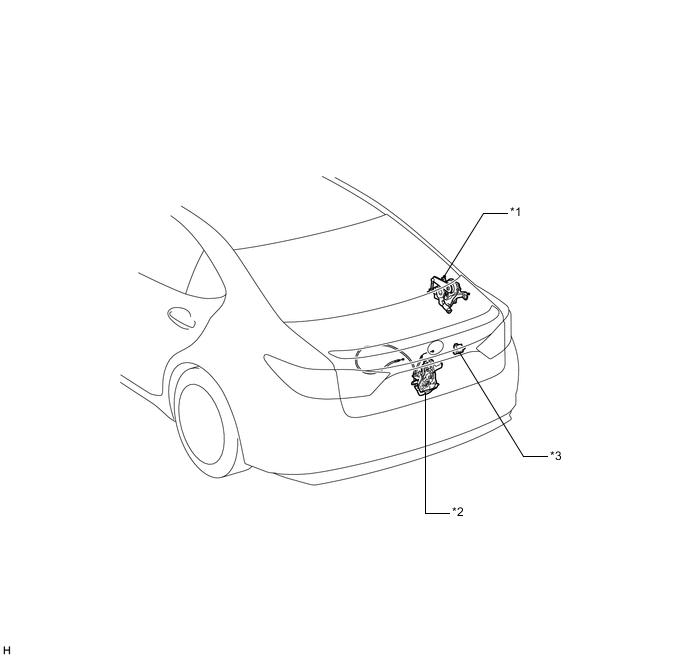

| *1 | LUGGAGE CLOSER MOTOR ASSEMBLY | *2 | LUGGAGE DOOR CLOSER ASSEMBLY |
| *3 | LUGGAGE ELECTRICAL KEY SWITCH | - | - |
ILLUSTRATION

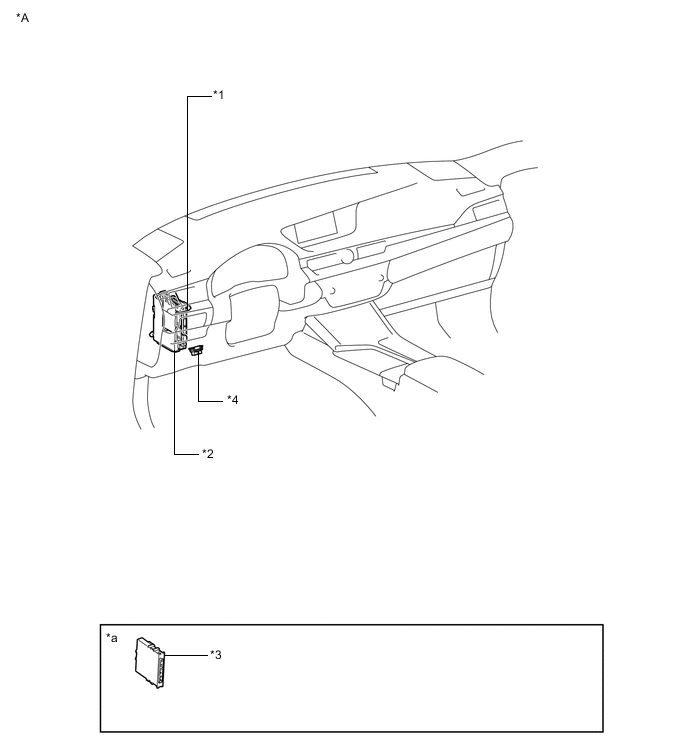

| *A | for LHD | - | - |
| *1 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) | *2 | INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - PTL FUSE - ECU-IG1 NO. 2 FUSE |
| *3 | CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) | *4 | DLC3 |
| *a | Refer to the Service Bulletin for the installation position of the part. | - | - |
ILLUSTRATION

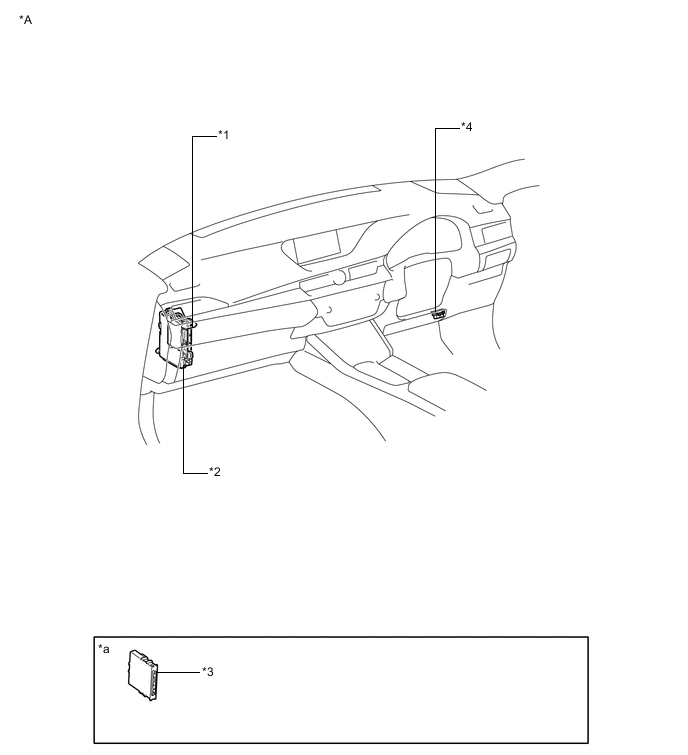

| *A | for RHD | - | - |
| *1 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) | *2 | INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - PTL FUSE - ECU-IG1 NO. 2 FUSE |
| *3 | CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) | *4 | DLC3 |
| *a | Refer to the Service Bulletin for the installation position of the part. | - | - |
