CONSOLE BOX LIGHT REMOVAL

PROCEDURE

1. REMOVE CONSOLE REAR END PANEL SUB-ASSEMBLY

   Click here

2. REMOVE CONSOLE BOX POCKET

   Click here

3. REMOVE CONSOLE COMPARTMENT DOOR SUB-ASSEMBLY

   Click here

4. REMOVE FRONT UPPER CONSOLE PANEL GARNISH

   Click here

5. REMOVE CONSOLE BOX ILLUMINATION LIGHT ASSEMBLY




   1.

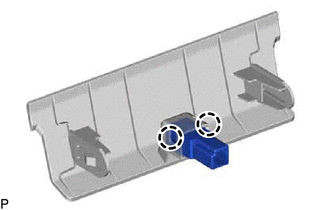

      Disengage the 2 claws and remove the console box illumination light assembly.
