CAN COMMUNICATION SYSTEM(w/o Central Gateway ECU) Check CAN Bus Lines for Short Circuit (LHD Models)

Click here
Click here
DTC Code DTC Name
  Check CAN Bus Lines for Short Circuit (LHD Models)
Click here

DESCRIPTION

There may be a short circuit between the V bus main lines and/or CAN branch lines when the resistance between terminals 6 (CANH) and 14 (CANL) of the DLC3 is below 54 Ω.

Symptom Trouble Area
Resistance between terminals 6 (CANH) and 14 (CANL) of the DLC3 is below 54 Ω.

  • Short in CAN main bus lines

  • Short in CAN branch lines

  • Hybrid vehicle control ECU assembly

  • ECM

  • Main body ECU (multiplex network body ECU)

  • Combination meter assembly

  • Brake booster with master cylinder assembly (skid control ECU)

  • Steering sensor

  • Power steering ECU with motor assembly

  • Airbag sensor assembly

  • Air conditioning amplifier assembly

  • Certification ECU (smart key ECU assembly)

  • Radio receiver assembly*1*2

  • Clearance warning ECU assembly

  • Telematics transceiver*3

  • Headlight leveling ECU (headlight swivel ECU assembly)

  • CAN junction connector LH1

  • CAN junction connector RH1

A0005C9E02
Click here

WIRING DIAGRAM

Click here

CAUTION / NOTICE / HINT

Note:

  • Before measuring the resistance of the CAN bus, turn the power switch off and leave the vehicle for 1 minute or more without operating the key or any switches, or opening or closing the doors. After that, disconnect the cable from the negative (-) auxiliary battery terminal and leave the vehicle for 1 minute or more before measuring the resistance.

  • After turning the power switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) auxiliary battery terminal notices before proceeding with work (Click here).

  • Because the order of diagnosis is important to allow correct diagnosis, make sure to begin troubleshooting using How to Proceed with Troubleshooting when CAN communication system related DTCs are output (Click here).

  • After performing repairs, perform the DTC check procedure and confirm that the DTCs are not output again.

  • DTC check procedure: Turn the power switch on (IG), wait at least 60 seconds, then drive the vehicle at a speed of 20 km/h (12 mph) or more for 5 minutes or more, turn the cruise control main switch on and wait at least 3.58 seconds.

  • After the repair, perform the CAN bus check and check that all the ECUs and sensors connected to the CAN communication system are displayed (Click here).

  • If the main body ECU (multiplex network body ECU) is replaced, refer to Service Bulletin.

Tip:

  • Operating the power switch, any other switches or a door triggers related ECU and sensor communication on the CAN. This communication will cause the resistance value to change.

  • Even after DTCs are cleared, if a DTC is stored again after driving the vehicle for a while, the malfunction may be occurring due to vibration of the vehicle. In such a case, wiggling the ECUs or wire harness while performing the inspection below may help determine the cause of the malfunction.

  • Connectors that connect to the CAN junction connector can be distinguished by the color of their CAN bus lines. When the connectors have been disconnected from the CAN junction connector, reconnecting the connectors to non-original positions on the CAN junction connector does not affect system performance. However, it is preferred to reconnect the connectors to their original positions to avoid negative effects on the wiring such as tension on the wire harnesses, and to make future maintenance easier.

Click here

PROCEDURE


  1. Click here

    CHECK FOR SHORT IN CAN BUS LINES (CAN J/C LH1)


    1. Disconnect the cable from the negative (-) auxiliary battery terminal.

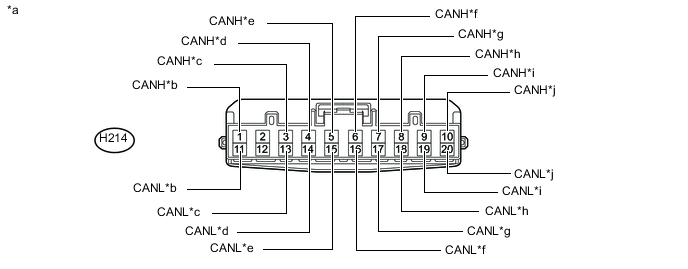

    2. A000762E02

      Disconnect the H214 CAN junction connector LH1.

      Table 1. Text in Illustration
      *a

      Front view of wire harness connector

      (to CAN Junction Connector LH1)

      		 *b to Headlight Leveling ECU (Headlight Swivel ECU Assembly)
      *c to Hybrid Vehicle Control ECU Assembly *d to Steering Sensor
      *e to Main Body ECU (Multiplex Network Body ECU) *f to DLC3
      *g to Brake Booster with Master Cylinder Assembly (Skid Control ECU) *h to Combination Meter Assembly
      *i to CAN Junction Connector RH1 *j to Power Steering ECU with Motor Assembly

    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance
      Tester Connection Condition Specified Condition Connected to
      H214-1 (CANH) - H214-11 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher Headlight leveling ECU (headlight swivel ECU assembly)
      H214-3 (CANH) - H214-13 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher Hybrid vehicle control ECU assembly
      H214-4 (CANH) - H214-14 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher Steering sensor
      H214-5 (CANH) - H214-15 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher Main body ECU (multiplex network body ECU)
      H214-6 (CANH) - H214-16 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 1 MΩ or higher DLC3
      H214-7 (CANH) - H214-17 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher Brake booster with master cylinder assembly (skid control ECU)
      H214-8 (CANH) - H214-18 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω Combination meter assembly
      H214-9 (CANH) - H214-19 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω CAN junction connector RH1
      H214-10 (CANH) - H214-20 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher Power steering ECU with motor assembly
      Result
      Symptom Proceed to
      OK A
      NG (CAN junction connector RH1 main lines) B
      NG (ECU or sensor branch lines) C
      NG (DLC3 branch lines) D
      NG (Combination meter assembly main lines) E

  2. Click here

    CHECK FOR SHORT IN CAN BUS LINES (CAN J/C LH1 - CAN J/C RH1)


    1. Reconnect the H214 CAN junction connector LH1.

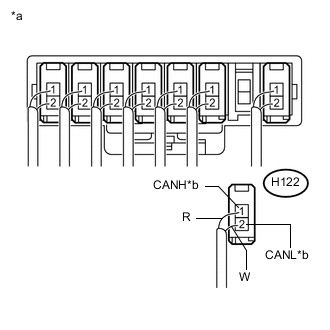

    2. A0008O2E02

      Disconnect the H122 CAN main bus line connector.

      Table 2. Text in Illustration
      *a

      Rear view of wire harness connector

      (to CAN Junction Connector RH1)
      *b to CAN Junction Connector LH1
      Note:

      • Before disconnecting the connector, make a note of where it is connected.

      • Reconnect the connector to its original position.

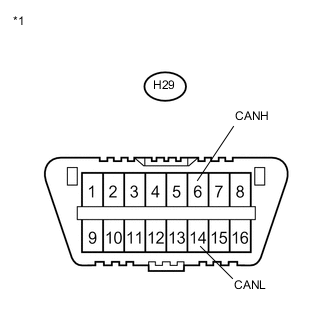

    3. A0003WRE03

      Measure the resistance according to the value(s) in the table below.

      Table 3. Text in Illustration
      *1 DLC3
      Standard Resistance
      Tester Connection Condition Specified Condition
      H29-6 (CANH) - H29-14 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω

    • OKClick here
    • NG

      REPAIR OR REPLACE CAN MAIN BUS LINES (CAN J/C LH1 - CAN J/C RH1)

  3. Click here

    CHECK FOR SHORT IN CAN BUS LINES (CAN J/C RH1)


    1. Reconnect the H122 CAN main bus line connector.

    2. A0003WRE03

      Connect the probes of an electrical tester to terminals 6 (CANH) and 14 (CANL) of the DLC3.

      Table 4. Text in Illustration
      *1 DLC3
    3. A00085KE28

      While observing the resistance value shown on the electrical tester, disconnect connectors (H123, H199, H127, H128, H132 and H210) from the CAN junction connector RH1 one by one until the resistance becomes normal (between 54 and 69 Ω).

      Table 5. Text in Illustration
      *a

      Component without harness connected

      (CAN Junction Connector RH1)

      		 - -
      Table 6. Wiring Color
      CAN Junction Connector RH1 Side Code Color (CANH Side) Color (CANL Side)
      ECM H125 B W
      CAN main bus line (bus line connecting CAN junction connector LH1 and CAN junction connector RH1) H122 R W
      Air conditioning amplifier assembly H123 G W
      Radio receiver assembly*1*2 H128 L W
      Airbag sensor assembly H199 Y W
      Certification ECU (smart key ECU assembly) H127 V W
      Clearance warning ECU assembly H132 P W
      Telematics transceiver*3 H210 BE W

      • *1: for Navigation Receiver Type

      • *2: for Radio and Display Type

      • *3: w/ Manual (SOS) Switch

      Note:

      Do not reconnect the disconnected connectors until this inspection is complete because there may be a short in 2 or more branch lines.

      Result
      Symptom Proceed to
      The resistance is still below 54 Ω when all the specified connectors are disconnected. (There are no shorts between a pair of branch lines.) A
      The resistance becomes normal (between 54 and 69 Ω) when a connector is disconnected. (There is a short between one or more pairs of branch lines.) B

    4. When there is a short in one or more of the branch lines:


      1. Reconnect all of the connectors to the CAN junction connector, except for the one that was disconnected last (the short-circuited bus line). Check that the resistance shown on the electrical tester is normal (between 54 and 69 Ω) to confirm that there is a short in the one branch line only.

        Tip:

        • Connectors that connect to the CAN junction connector can be distinguished by the color of their CAN bus lines.

        • Reconnecting the connectors to non-original positions on the CAN junction connector does not affect system performance. However, it is preferred to reconnect the connectors to their original positions to avoid negative effects on the wiring such as tension on the wire harnesses, and to make future maintenance easier.


  4. Click here

    CHECK FOR SHORT IN CAN BUS LINES (ECM MAIN BUS LINE)

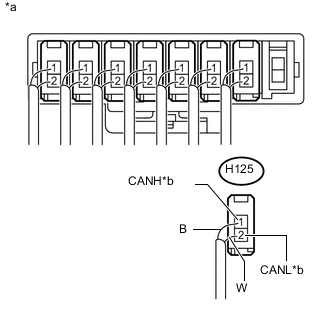

    1. A00091PE05

      Disconnect the H125 ECM main bus line connector.

      Table 7. Text in Illustration
      *a

      Rear view of wire harness connector

      (to CAN Junction Connector RH1)
      *b to ECM
      Note:

      • Before disconnecting the connector, make a note of where it is connected.

      • Reconnect the connector to its original position.

    2. A0003WRE03

      Measure the resistance according to the value(s) in the table below.

      Table 8. Text in Illustration
      *1 DLC3
      Standard Resistance
      Tester Connection Condition Specified Condition
      H29-6 (CANH) - H29-14 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω
      Result
      Symptom Proceed to
      The resistance is still below 54 Ω when the ECM connector is disconnected. (There are no shorts in the ECM or between its main bus lines.) A
      The resistance becomes normal (between 108 to 132 Ω) when the ECM connector is disconnected. (There is a short in the ECM or between its main bus lines.) B

  5. Click here

    CHECK FOR SHORT IN CAN BUS LINES (ECM)


    1. Reconnect the H125 ECM main bus line connector.

    2. Disconnect the A22 ECM connector.

    3. A0003WRE03

      Measure the resistance according to the value(s) in the table below.

      Table 9. Text in Illustration
      *1 DLC3
      Standard Resistance
      Tester Connection Condition Specified Condition
      H29-6 (CANH) - H29-14 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω
      Tip:

      If the resistance becomes normal (between 108 to 132 Ω) when the connector is disconnected, there may be a short in the ECM.


    • OK

      REPLACE ECM (Click here)

    • NG

      REPAIR OR REPLACE CAN MAIN BUS LINES (ECM MAIN LINES)

  6. Click here

    CHECK FOR SHORT IN CAN BUS LINES (ECU, SENSOR)


    1. Reconnect the connector for the short-circuited branch line to the CAN junction connector (the connector that caused the bus line resistance to become normal (between 54 and 69 Ω) when it was disconnected).

    2. Disconnect the connector that includes the DLC3 connected CAN lines (such as CANH and CANL) from the ECU or sensor to which the short-circuited branch line is connected (Click here).

    3. A0003WRE03

      Measure the resistance according to the value(s) in the table below.

      Table 10. Text in Illustration
      *1 DLC3
      Standard Resistance
      Tester Connection Condition Specified Condition
      H29-6 (CANH) - H29-14 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 54 to 69 Ω
      Tip:

      If the resistance becomes normal (between 54 and 69 Ω) when the connector is disconnected from the ECU or sensor, there may be a short in the ECU or sensor.


    • OK

      REPLACE CORRESPONDING ECU OR SENSOR

    • NG

      REPAIR OR REPLACE CORRESPONDING ECU OR SENSOR BRANCH LINES OR CONNECTOR

  7. Click here

    CHECK FOR SHORT IN CAN BUS LINES (COMBINATION METER ASSEMBLY)


    1. Reconnect the H214 CAN junction connector LH1.

    2. Disconnect the H14 combination meter assembly connector.

    3. A0003WRE03

      Measure the resistance according to the value(s) in the table below.

      Table 11. Text in Illustration
      *1 DLC3
      Standard Resistance
      Tester Connection Condition Specified Condition
      H29-6 (CANH) - H29-14 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω
      Tip:

      If the resistance becomes normal (between 108 to 132 Ω) when the connector is disconnected, there may be a short in the combination meter assembly.


    • OK

      REPLACE COMBINATION METER ASSEMBLY (Click here)

    • NG

      REPAIR OR REPLACE CAN MAIN BUS LINES (COMBINATION METER ASSEMBLY MAIN LINES)
