CAN COMMUNICATION SYSTEM(w/o Central Gateway ECU) PARTS LOCATION

ILLUSTRATION

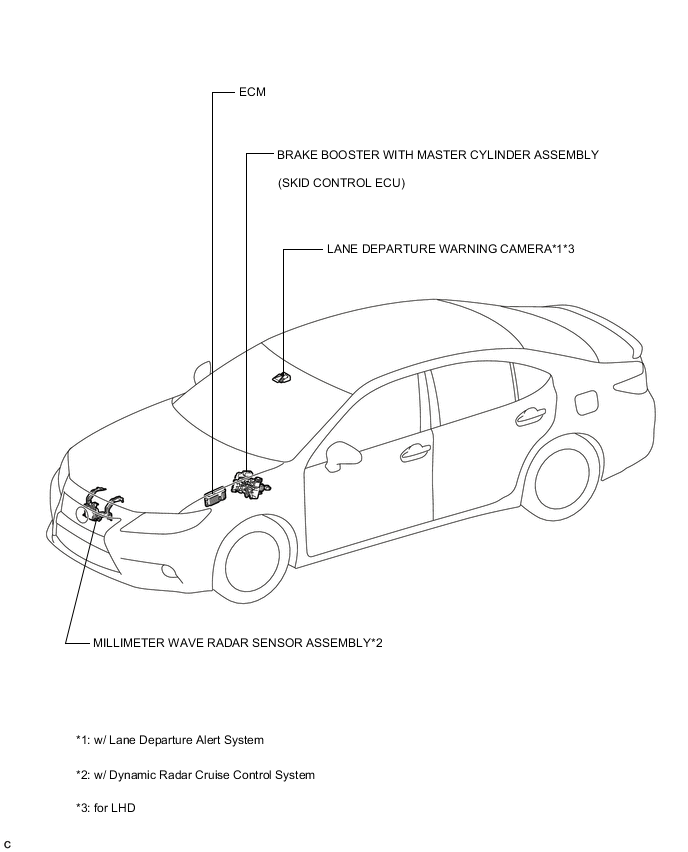

A0004E5E07

ILLUSTRATION

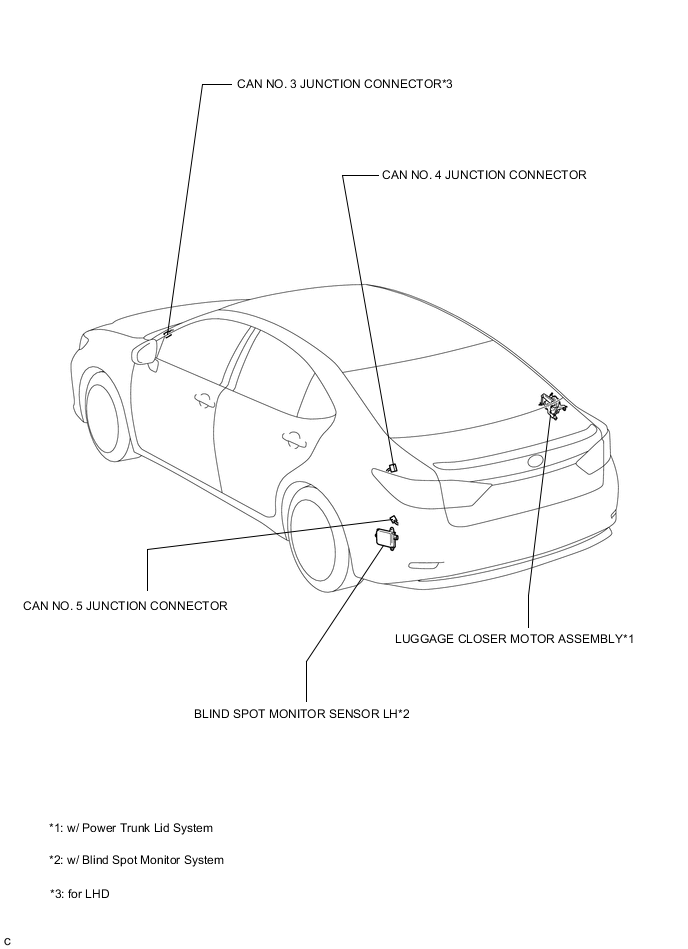

A0008PAE04

ILLUSTRATION

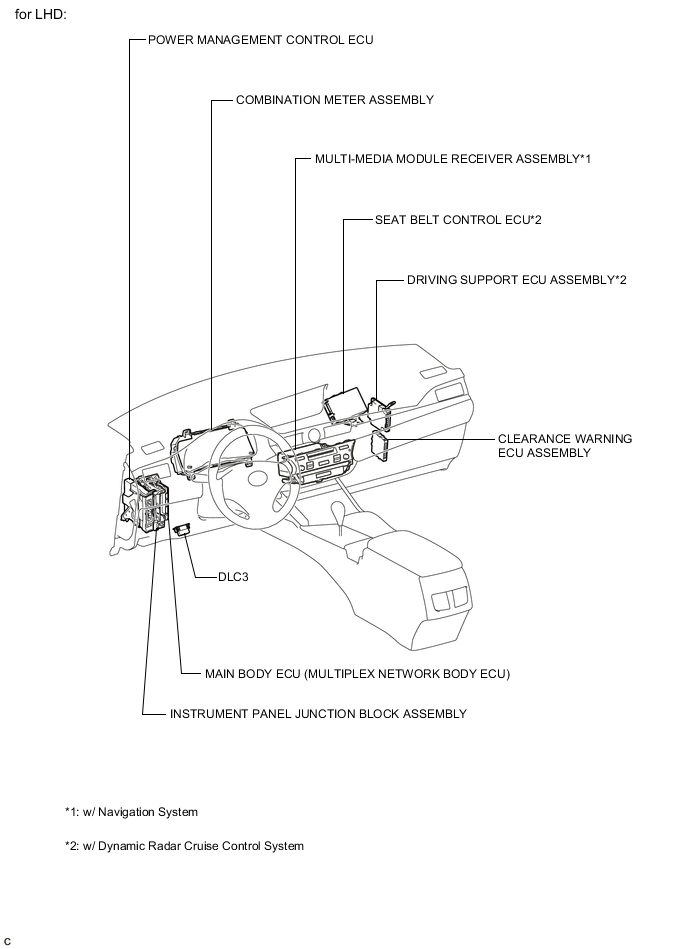

A00082NE05

ILLUSTRATION

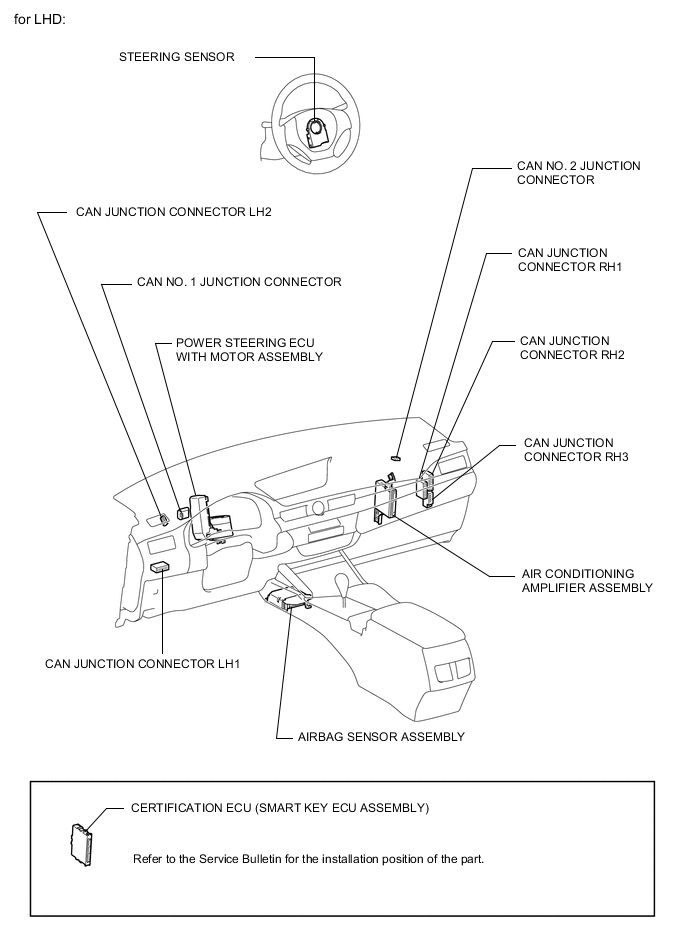

A00058PE01

ILLUSTRATION

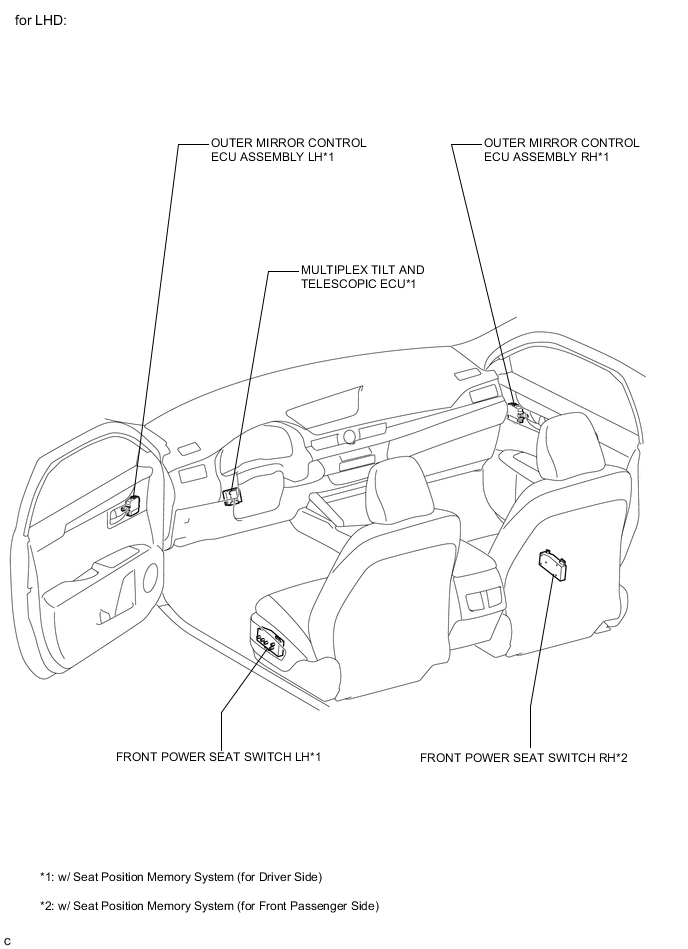

A0004T4E10

ILLUSTRATION

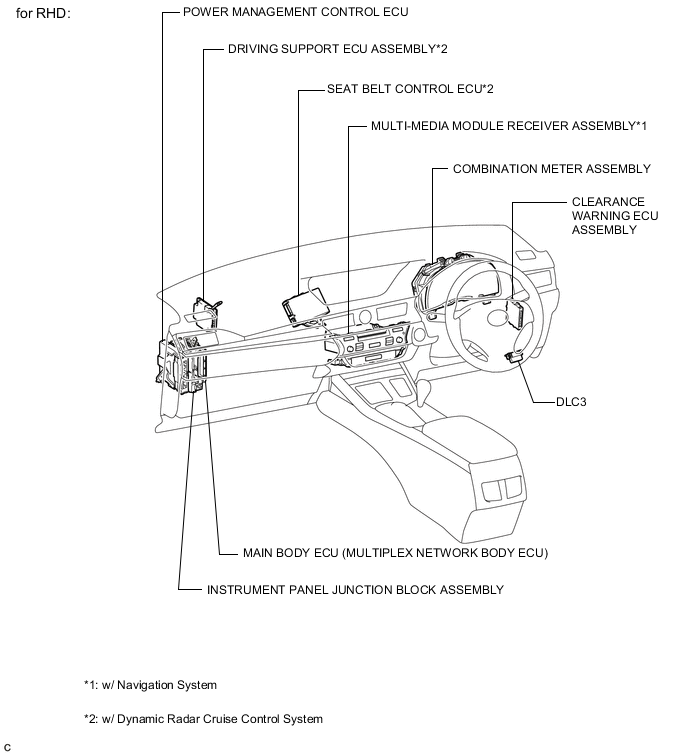

A0007BHE02

ILLUSTRATION

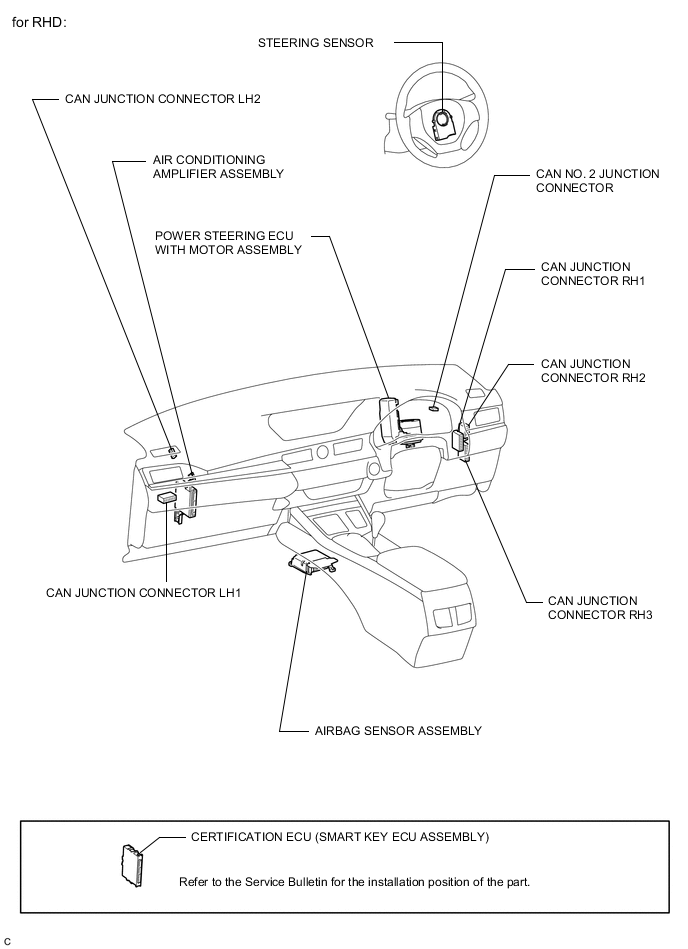

A0009N9E01

ILLUSTRATION

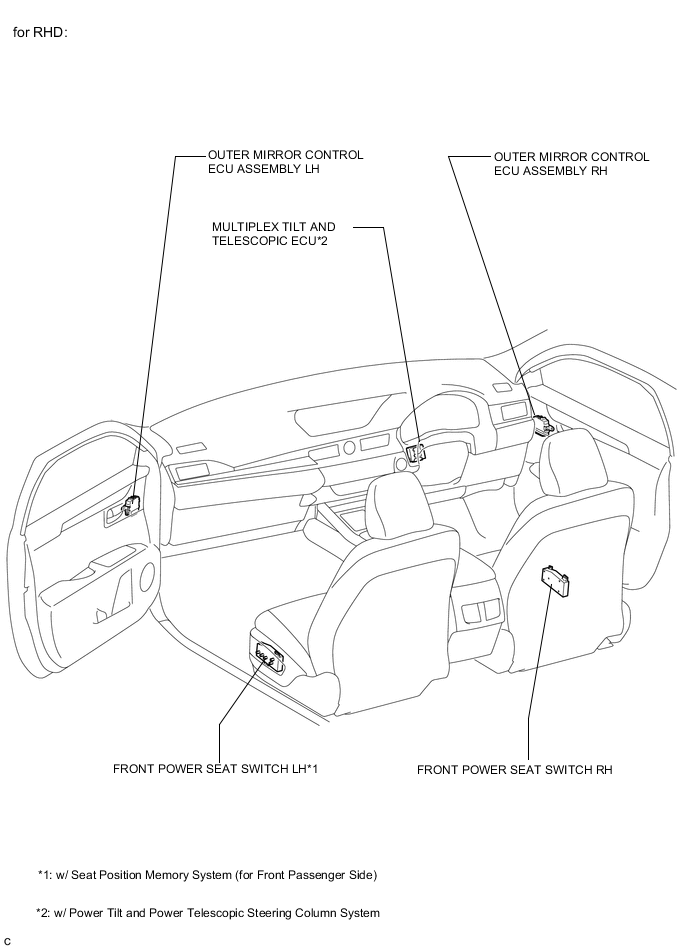

A00079EE01
