LIN COMMUNICATION SYSTEM SYSTEM DIAGRAM
-
DOOR BUS LINES
-
CERTIFICATION BUS LINES

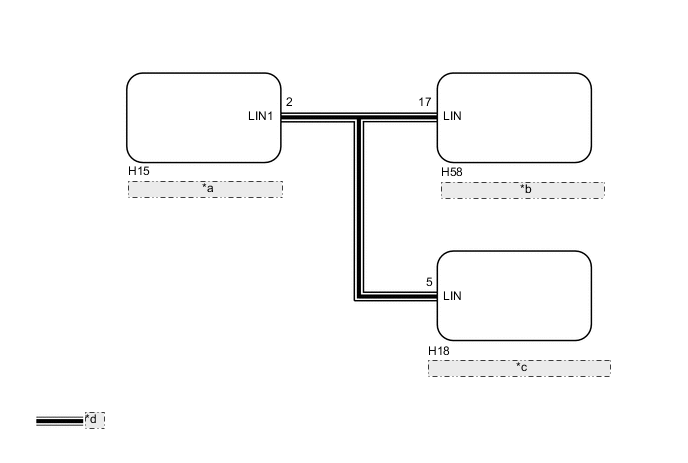

*a ID Code Box (Immobiliser Code ECU) *b Certification ECU (Smart Key ECU Assembly) *c Steering Lock ECU (Steering Lock Actuator Assembly) *d LIN Communication Line
