INTEGRATION RELAY INSTALLATION

PROCEDURE


  1. INSTALL ENGINE ROOM JUNCTION BLOCK ASSEMBLY


    1. Connect the 2 connectors.

    2. Connect the 4 connectors to the engine room junction block assembly.

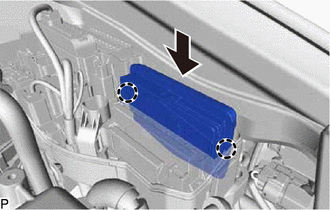

    3. A000990

      Engage the 2 claws to install the engine room junction block assembly.

  2. INSTALL NO. 1 RELAY BLOCK COVER

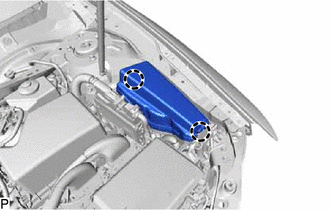

    1. A0005O2

      Engage the 2 claws to install the No. 1 relay block cover.

  3. CONNECT CABLE TO NEGATIVE AUXILIARY BATTERY TERMINAL

    Note

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected Click here.

  4. INSTALL LUGGAGE TRIM SERVICE HOLE COVER

    Click here
