BATTERY THERMOMETER SENSOR ON-VEHICLE INSPECTION

PROCEDURE


  1. INSPECT THERMISTOR ASSEMBLY


    1. A00097FE03
      A0004ALE03

      Disconnect the connector from the thermistor assembly.

    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance
      Tester Connection Condition Specified Condition
      1 - 2 10°C (50°F) 3.00 to 3.73 kΩ
      1 - 2 15°C (59°F) 2.45 to 2.88 kΩ
      1 - 2 20°C (68°F) 1.95 to 2.30 kΩ
      1 - 2 25°C (77°F) 1.60 to 1.80 kΩ
      1 - 2 30°C (86°F) 1.28 to 1.47 kΩ
      1 - 2 35°C (95°F) 1.00 to 1.22 kΩ
      1 - 2 40°C (104°F) 0.80 to 1.00 kΩ
      1 - 2 45°C (113°F) 0.65 to 0.85 kΩ
      1 - 2 50°C (122°F) 0.50 to 0.70 kΩ
      1 - 2 55°C (131°F) 0.44 to 0.60 kΩ
      1 - 2 60°C (140°F) 0.36 to 0.50 kΩ
      Text in Illustration

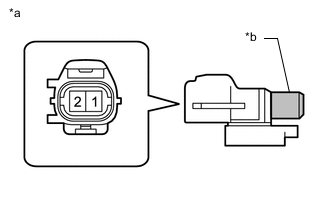

      *a

      Component without harness connected

      (Thermistor Assembly)
      *b Sensing Portion
      *c Resistance (kΩ)
      *d Temperature °C (°F)
      *e Allowable Range

      Note


      • Hold the thermistor assembly only by its connector. Touching the thermistor assembly may change the resistance value.

      • When measuring, the thermistor assembly must be the same as the ambient temperature.

      Tech Tips

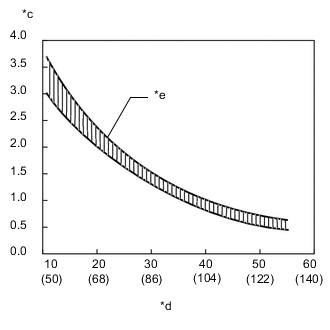

      As the temperature increases, the resistance decreases (see the graph).

      If the resistance is not as specified, replace the thermistor assembly.
