LEXUS PARKING ASSIST-SENSOR SYSTEM, Diagnostic DTC:C1AE7

DTC Code DTC Name
C1AE7 Rear Left Center Sensor Malfunction

DESCRIPTION

The No. 1 ultrasonic sensor (rear left center sensor) is installed on the front bumper. The ECU detects obstacles based on signals received from the No. 1 ultrasonic sensor (rear left center sensor). If the No. 1 ultrasonic sensor (rear left center sensor) has an open circuit or other malfunction, it will not function normally.

DTC No. DTC Detection Condition Trouble Area
C1AE7 A malfunction of the No. 1 ultrasonic sensor (rear left center sensor).

  • No. 1 ultrasonic sensor (rear left center sensor)

  • Harness or connector

  • Clearance warning ECU assembly

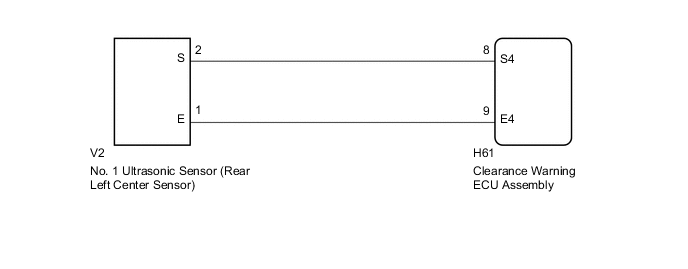

WIRING DIAGRAM

A0009Q7E06

CAUTION / NOTICE / HINT

Note

If DTCs are output after repairs, turn the power switch on (IG) and turn the clearance sonar main switch on. Then clear the DTCs Click here.

PROCEDURE


  1. INSPECT NO. 1 ULTRASONIC SENSOR (REAR LEFT CENTER SENSOR)


    1. Remove the No. 1 ultrasonic sensor (rear left center sensor) Click here.

    2. A0005XIE01
      Text in Illustration
      *a

      Component without harness connected

      (No. 1 Ultrasonic Sensor (Rear Left Center Sensor))

      Measure the resistance according to the value(s) in the table below.

      Standard Resistance
      Tester Connection Condition Specified Condition
      2 (S) - 1 (E) Always 20 to 40 kΩ

    NG

    REPLACE NO. 1 ULTRASONIC SENSOR (REAR LEFT CENTER SENSOR) Click here

    OK

  2. CHECK HARNESS AND CONNECTOR (REAR LEFT CENTER SENSOR - CLEARANCE WARNING ECU ASSEMBLY)


    1. Disconnect the V2 No. 1 ultrasonic sensor connector.

    2. Disconnect the H61 clearance warning ECU assembly connector.

    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance
      Tester Connection Condition Specified Condition
      V2-2 (S) - H61-8 (S4) Always Below 1 Ω
      V2-1 (E) - H61-9 (E4) Always Below 1 Ω
      V2-2 (S) - Body ground Always 10 kΩ or higher
      V2-1 (E) - Body ground Always 10 kΩ or higher
      Result
      Result Proceed to
      NG A
      OK (for LHD) B
      OK (for RHD) C

    A

    REPAIR OR REPLACE HARNESS OR CONNECTOR

    B

    REPLACE CLEARANCE WARNING ECU ASSEMBLY Click here

    C

    REPLACE CLEARANCE WARNING ECU ASSEMBLY Click here
