LEXUS PARKING ASSIST-SENSOR SYSTEM SYSTEM DIAGRAM

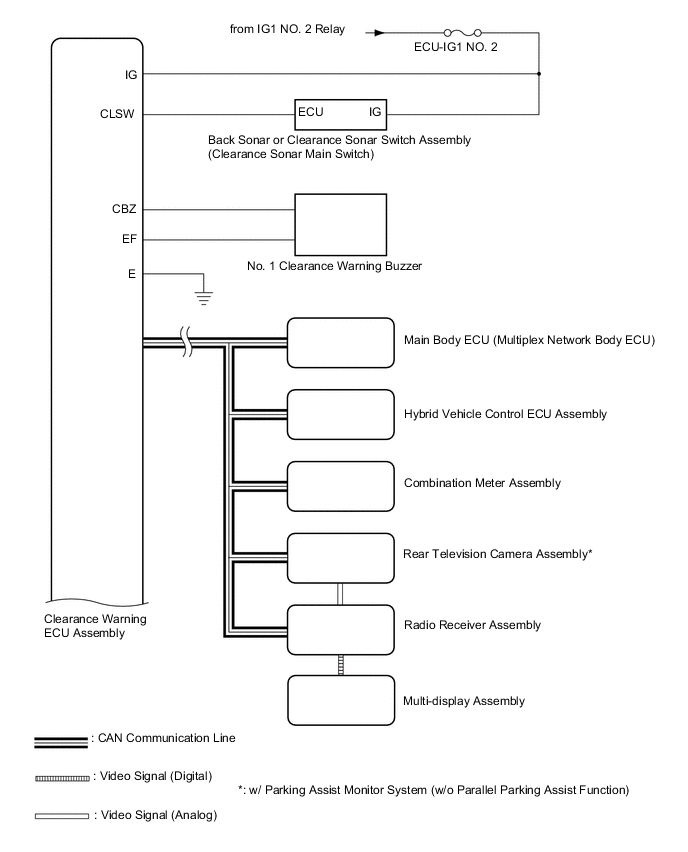

A0004EOE08
A0006RVE12
Communication Table
Sender Receiver Signal Line
Main Body ECU (Multiplex Network Body ECU) Clearance Warning ECU Assembly Destination information signal CAN
Hybrid Vehicle Control ECU Assembly Clearance Warning ECU Assembly Shift position signal CAN
Combination Meter Assembly Clearance Warning ECU Assembly Vehicle speed signal CAN
Clearance Warning ECU Assembly Combination Meter Assembly

  • Clearance sonar indicator illumination request signal

  • Sensor information signal

  • Clearance sonar sensor diagnosis signal

 CAN
Clearance Warning ECU Assembly Radio Receiver Assembly Sensor information signal CAN
Clearance Warning ECU Assembly Rear Television Camera Assembly* Sensor information signal CAN
Radio Receiver Assembly Multi-display Assembly Video signal Digital
Rear Television Camera Assembly* Radio Receiver Assembly Video signal Analog
