STEERING WHEEL REMOVAL

Click here
Click here Click here

CAUTION / NOTICE / HINT

Note:

  • Do not replace the spiral cable with sensor sub-assembly with the auxiliary battery connected and the power switch on (IG).

  • Do not rotate the spiral cable with sensor sub-assembly without the steering wheel with the auxiliary battery connected and the power switch on (IG).

  • Ensure that the steering wheel is installed and aligned straight when inspecting the steering sensor.

Click here

PROCEDURE


  1. Click here

    ALIGN FRONT WHEELS FACING STRAIGHT AHEAD

  2. Click here

    REMOVE HORN BUTTON ASSEMBLY

    (Click here)

  3. Click here

    REMOVE STEERING WHEEL ASSEMBLY


    1. Disconnect each connector from the spiral cable sub-assembly.

    2. w/ Pre-crash Safety System:

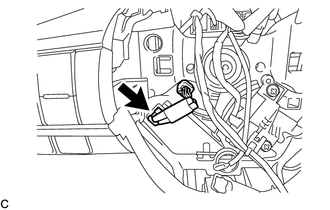

      1. A0005B7

        Disconnect the connector.

    3. A0009PME01

      Remove the steering wheel assembly set nut.

      Table 1. Text in Illustration
      *a Matchmark

    4. Put matchmarks on the steering wheel assembly and steering main shaft.

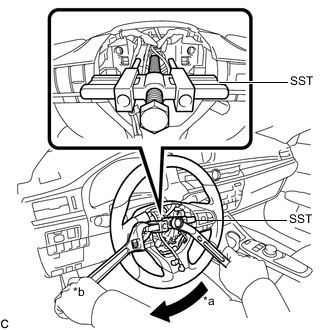

    5. A0009H7E05

      Using SST, remove the steering wheel assembly.

      09950-50013 09951-05010 09952-05010 09953-05020 09954-05070
      Table 2. Text in Illustration
      *a Turn
      *b Hold
      Note:

      Apply a small amount of grease to the threads and tip of SST (09953-05020) before use.

  4. Click here

    REMOVE CRUISE CONTROL MAIN SWITCH

    Click here

  5. Click here

    REMOVE STEERING PAD SWITCH ASSEMBLY
