STEERING WHEEL REMOVAL

Click here
Click here Click here

CAUTION / NOTICE / HINT

Note:

  • Do not replace the spiral cable with sensor sub-assembly with the auxiliary battery connected and the power switch on (IG).

  • Do not rotate the spiral cable with sensor sub-assembly without the steering wheel with the auxiliary battery connected and the power switch on (IG).

  • Ensure that the steering wheel is installed and aligned straight when inspecting the steering sensor.

Click here

PROCEDURE


  1. Click here

    ALIGN FRONT WHEELS FACING STRAIGHT AHEAD

  2. Click here

    REMOVE HORN BUTTON ASSEMBLY

    (Click here)

  3. Click here

    REMOVE STEERING WHEEL ASSEMBLY


    1. Disconnect the connectors from the spiral cable sub-assembly.

    2. w/ Steering Heater:


      1. A0007D2

        Disconnect the connector.

    3. A000820E02

      Remove the steering wheel assembly set nut.

      Table 1. Text in Illustration
      *a Matchmark

    4. Put matchmarks on the steering wheel assembly and steering main shaft.

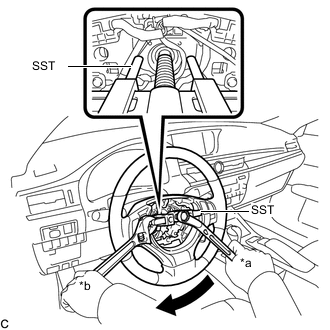

    5. A0006QLE02

      Using SST, remove the steering wheel assembly.

      09950-50013 09951-05010 09952-05010 09953-05020 09954-05070
      Table 2. Text in Illustration
      *a Turn
      *b Hold
      Note:

      Apply a small amount of grease to the threads and tip of SST (09953-05020) before use.

  4. Click here

    REMOVE STEERING PAD SWITCH ASSEMBLY

    Click here

  5. Click here

    REMOVE CRUISE CONTROL MAIN SWITCH

    Click here

  6. Click here

    REMOVE CRUISE CONTROL SWITCH WIRE


    1. Remove the cruise control switch wire.

  7. Click here

    REMOVE STEERING SHAKE DAMPER

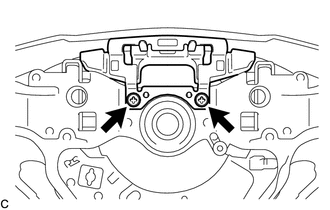

    1. A0003Y2

      Remove the 2 screws and steering shake damper from the steering wheel sub-assembly.

  8. Click here

    REMOVE LOWER STEERING WHEEL BOSS COVER


    1. w/ Steering Heater:

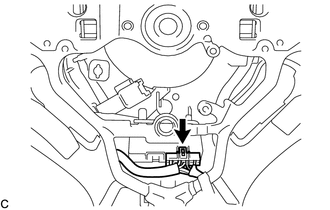

      1. A00052S

        Disconnect the connector.

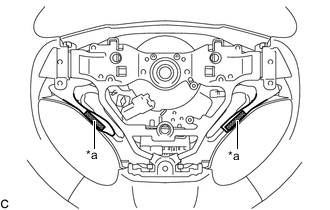

      2. A0005DDE02

        Remove the double-sided tape and separate the steering heater harness from the lower steering wheel boss cover.

        Table 3. Text in Illustration
        *a Double-sided Tape

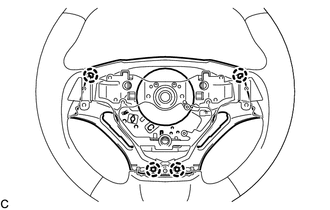

    2. A0005PI

      Disengage the 4 claws to remove the lower steering wheel boss cover from the steering wheel sub-assembly.

  9. Click here

    REMOVE STEERING WHEEL HEATER CONTROL ASSEMBLY (w/ Steering Heater)
