PARKING BRAKE PEDAL(for LHD) COMPONENTS

ILLUSTRATION

A0005XBE04

ILLUSTRATION

A0009P4E05

ILLUSTRATION

A0004KHE15
*1 PARKING BRAKE PEDAL ASSEMBLY
*2 ADJUSTING NUT
*3 NO. 1 PARKING BRAKE CABLE ASSEMBLY

ILLUSTRATION

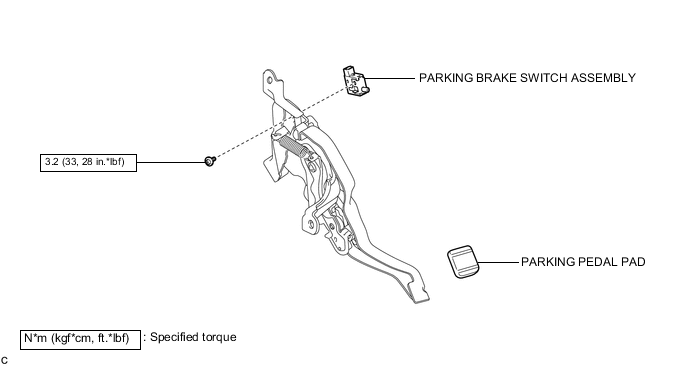

A0006SDE07
