SHIFT LEVER INSPECTION

PROCEDURE


  1. INSPECT LOWER SHIFT LEVER ASSEMBLY


    1. Inspect shift lock control ECU wire harness:

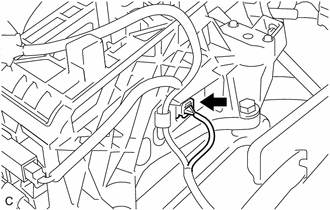

      1. A0008ZI

        Disconnect the shift lock control ECU connector.

      2. A000590E01
        Text in Illustration
        *a

        Front view of wire harness connector

        (to Shift Lock Control ECU)

        Measure the voltage according to the value(s) in the table below.

        Standard Voltage
        Tester Connection Condition Specified Condition
        5 (IG) - Body ground Power switch on (IG) 11 to 14 V
        Power switch off Below 1 V
        4 (STP) - Body ground Brake pedal depressed 11 to 14 V
        Brake pedal released Below 1 V

        If the result is not as specified, repair or replace the shift lock control ECU wire harness.

      3. A000590E02
        Text in Illustration
        *a

        Front view of wire harness connector

        (to Shift Lock Control ECU)

        Measure the resistance according to the value(s) in the table below.

        Standard Resistance
        Tester Connection Condition Specified Condition
        1 (E) - Body ground Always Below 1 Ω

        If the result is not as specified, repair or replace the shift lock control ECU wire harness.

    2. Inspect shift lock solenoid:

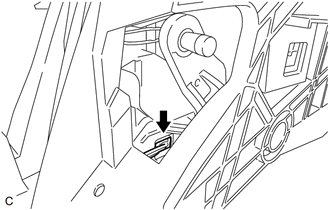

      1. A00075Z

        Disconnect the shift lock solenoid connector.

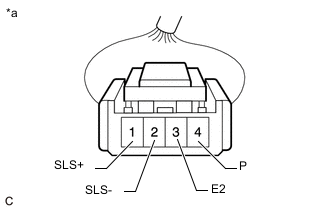

      2. A0003X0E02
        Text in Illustration
        *a

        Front view of wire harness connector

        (to Shift Lock Solenoid)

        Measure the resistance according to the value(s) in the table below when the shift lever is moved to each position.

        Standard Resistance
        Tester Connection Condition Specified Condition
        4 (P) - 3 (E2) Shift lever in P 10 kΩ or higher
        Shift lever not in P Below 1 Ω
        1 (SLS+) - 2 (SLS-) Always 112 Ω

        If the result is not as specified, replace the lower shift lever assembly.

  2. INSPECT TRANSMISSION CONTROL SWITCH (for LHD)

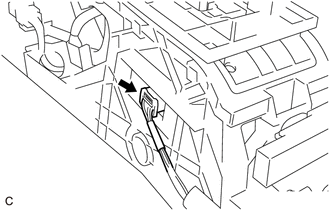

    1. A0008D6

      Disconnect the transmission control switch connector.

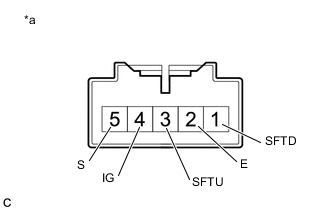

    2. A0007Q2E41
      Text in Illustration
      *a

      Component without harness connected

      (Transmission Control Switch)

      Measure the resistance between each terminal of the lower shift lever assembly when the shift lever is moved to each position.

      Standard Resistance
      Tester Connection Condition Specified Condition
      4 (IG) - 5 (S) Shift lever in S, "+" or "-" Below 1 Ω
      Shift lever not in S, "+" or "-" 10 kΩ or higher
      3 (SFTU) - 2 (E)

      Shift lever held in "+"

      (Up-shift)

      		 Below 1 Ω
      Shift lever not held in "+" 10 kΩ or higher
      1 (SFTD) - 2 (E)

      Shift lever held in "-"

      (Down-shift)

      		 Below 1 Ω
      Shift lever not held in "-" 10 kΩ or higher

      If the result is not as specified, replace the lower shift lever assembly.

  3. INSPECT TRANSMISSION CONTROL SWITCH (for RHD)

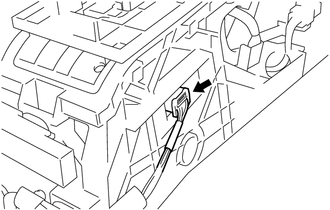

    1. A0003YE

      Disconnect the transmission control switch connector.

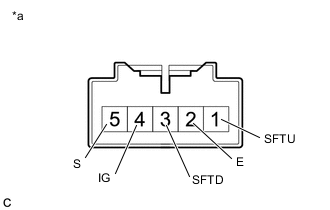

    2. A0007Q2E42
      Text in Illustration
      *a

      Component without harness connected

      (Transmission Control Switch)

      Measure the resistance between each terminal of the lower shift lever assembly when the shift lever is moved to each position.

      Standard Resistance
      Tester Connection Condition Specified Condition
      4 (IG) - 5 (S) Shift lever in S, "+" or "-" Below 1 Ω
      Shift lever not in S, "+" or "-" 10 kΩ or higher
      1 (SFTU) - 2 (E)

      Shift lever held in "+"

      (Up-shift)

      		 Below 1 Ω
      Shift lever not held in "+" 10 kΩ or higher
      3 (SFTD) - 2 (E)

      Shift lever held in "-"

      (Down-shift)

      		 Below 1 Ω
      Shift lever not held in "-" 10 kΩ or higher

      If the result is not as specified, replace the lower shift lever assembly.
