SHIFT LEVER INSPECTION

PROCEDURE

1. Click here

   INSPECT LOWER SHIFT LEVER ASSEMBLY




   1. Inspect shift lock control ECU wire harness



      1.

         Measure the voltage according to the value(s) in the table below.

         Standard Voltage
         Tester Connection Condition Specified Condition 5 (IG) - Body ground Power switch on (IG) 11 to 14 V Power switch off Below 1 V 4 (STP) - Body ground Brake pedal depressed 11 to 14 V Brake pedal released Below 1 V

         Table 1. Text in Illustration

         *a	Front view of wire harness connector (to Shift Lock Control ECU)

         If the result is not as specified, repair or replace the shift lock control ECU wire harness.

      2.

         Measure the resistance according to the value(s) in the table below.

         Standard Resistance
         Tester Connection Condition Specified Condition 1 (E) - Body ground Always Below 1 Ω

         Table 2. Text in Illustration

         *a	Front view of wire harness connector (to Shift Lock Control ECU)

         If the result is not as specified, repair or replace the shift lock control ECU wire harness.

   2. Inspect shift lock solenoid



      1.

         Disconnect the shift lock solenoid connector.

      2.

         Measure the resistance according to the value(s) in the table below when the shift lever is moved to each position.

         Standard Resistance
         Tester Connection Condition Specified Condition 4 (P) - 3 (E2) Shift lever in P 10 kΩ or higher 4 (P) - 3 (E2) Shift lever not in P Below 1 Ω

         Table 3. Text in Illustration

         *a	Front view of wire harness connector (to Shift Lock Solenoid)

         If the result is not as specified, replace the lower shift lever assembly.

      3. Measure the resistance according to the value(s) in the table below.

         Standard Resistance
         Tester Connection Condition Specified Condition 1 (SLS+) - 2 (SLS-) Always 112 Ω

         If the result is not as specified, replace the lower shift lever assembly.

2. Click here

   INSPECT TRANSMISSION CONTROL SWITCH (for LHD)



   1.

      Measure the resistance between each terminal of the lower shift lever assembly when the shift lever is moved to each position.

      Standard Resistance
      Tester Connection Condition Specified Condition 4 (IG) - 5 (S) Shift lever in S, "+" or "-" Below 1 Ω Shift lever not in S, "+" or "-" 10 kΩ or higher 3 (SFTU) - 2 (E) Shift lever held in "+" (Up-shift) Below 1 Ω Shift lever not in "+" 10 kΩ or higher 1 (SFTD) - 2 (E) Shift lever held in "-" (Down-shift) Below 1 Ω Shift lever not in "-" 10 kΩ or higher

      Table 4. Text in Illustration

      *a	Component without harness connected (Transmission Control Switch)

      If the result is not as specified, replace the lower shift lever assembly.

3. Click here

   INSPECT TRANSMISSION CONTROL SWITCH (for RHD)



   1.

      Measure the resistance between each terminal of the lower shift lever assembly when the shift lever is moved to each position.

      Standard Resistance
      Tester Connection Condition Specified Condition 4 (IG) - 5 (S) Shift lever in S, "+" or "-" Below 1 Ω Shift lever not in S, "+" or "-" 10 kΩ or higher 1 (SFTU) - 2 (E) Shift lever held in "+" (Up-shift) Below 1 Ω Shift lever not in "+" 10 kΩ or higher 3 (SFTD) - 2 (E) Shift lever held in "-" (Down-shift) Below 1 Ω Shift lever not in "-" 10 kΩ or higher

      Table 5. Text in Illustration

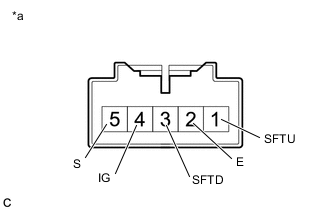

      *a	Component without harness connected (Transmission Control Switch)

      If the result is not as specified, replace the lower shift lever assembly.
