SHIFT LEVER REMOVAL

PROCEDURE


  1. REMOVE REAR CONSOLE BOX ASSEMBLY

    Click here

  2. REMOVE FLOOR CARPET BRACKET LH

    Click here

  3. REMOVE NO. 1 CONSOLE BOX MOUNTING BRACKET

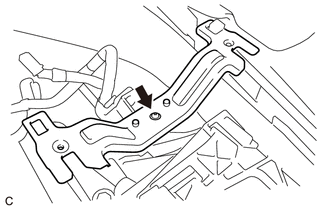

    1. A0003TR

      Remove the screw and No. 1 console box mounting bracket from the lower shift lever assembly.

  4. REMOVE NO. 1 CONSOLE BOX DUCT

    Click here

  5. REMOVE NO. 1 INDOOR ELECTRICAL KEY ANTENNA ASSEMBLY

    Click here

  6. REMOVE LOWER SHIFT LEVER ASSEMBLY


    1. Move the shift lever to N.

    2. A0003UA

      Disconnect the end of the transmission control cable assembly from the lower shift lever assembly.

    3. Disengage the 2 claws and disconnect the transmission control cable assembly from the lower shift lever assembly.

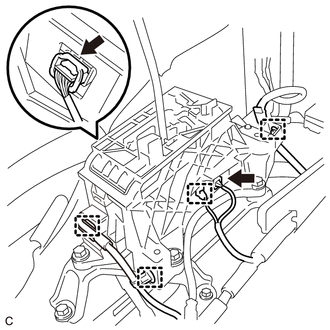

    4. A0006IH

      Disconnect the 4 clamps and 2 connectors from the lower shift lever assembly.

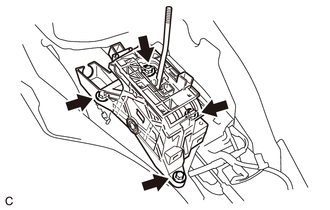

    5. A0007UU

      Remove the 4 bolts and lower shift lever assembly from the shift lever support.

  7. REMOVE SHIFT LEVER SUPPORT

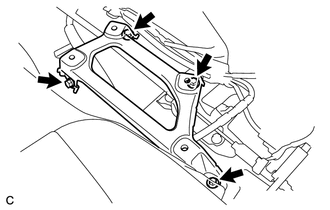

    1. A00065E

      Remove the 4 bolts and shift lever support from the body.
