OUTER REAR VIEW MIRROR COVER INSTALLATION

Info Added 2017-10-06

CAUTION / NOTICE / HINT

Tech Tips


  • Use the same procedure for the RH side and LH side.

  • The following procedure is for the LH side.

PROCEDURE


  1. INSTALL OUTER MIRROR COVER (for LED Type Turn Signal Light)

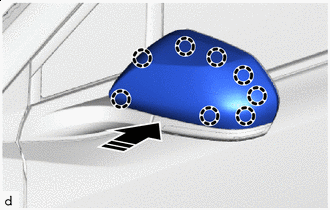

    1. A001WXHC01
      B00497S Install in this Direction

      Engage the claws to install the outer mirror cover as shown in the illustration.

  2. INSTALL OUTER MIRROR COVER (for Bulb Type Turn Signal Light)

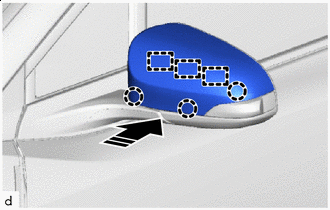

    1. A001T16C01
      B00497S Install in this Direction

      Engage the guides and claws to install the outer mirror cover as shown in the illustration.

  3. INSTALL OUTER MIRROR (for LED Type Turn Signal Light)

    Click here

  4. INSTALL OUTER MIRROR (for Bulb Type Turn Signal Light)

    Click here
