OUTER REAR VIEW MIRROR COVER REMOVAL

Info Added 2017-10-06

CAUTION / NOTICE / HINT

Tech Tips


  • Use the same procedure for the RH side and LH side.

  • The following procedure is for the LH side.

PROCEDURE


  1. REMOVE OUTER MIRROR (for LED Type Turn Signal Light)

    Click here

  2. REMOVE OUTER MIRROR (for Bulb Type Turn Signal Light)

    Click here

  3. REMOVE OUTER MIRROR COVER (for LED Type Turn Signal Light)

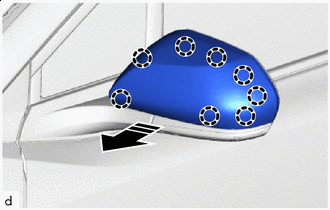

    1. A001Y3RC01
      B00497S Remove in this Direction

      Disengage the claws to remove the outer mirror cover as shown in the illustration.

  4. REMOVE OUTER MIRROR COVER (for Bulb Type Turn Signal Light)

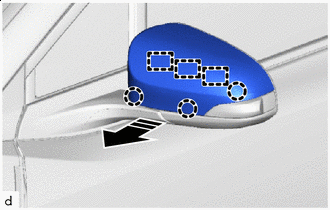

    1. A001TXLC01
      B00497S Remove in this Direction

      Disengage the claws and guides to remove the outer mirror cover as shown in the illustration.
