REAR CONSOLE BOX DISASSEMBLY

Info Added 2017-10-06

CAUTION / NOTICE / HINT

Tech Tips


  • Use the same procedure for LHD and RHD vehicles.

  • The procedure listed below is for the LHD vehicles.

PROCEDURE


  1. REMOVE NO. 1 POWER OUTLET SOCKET ASSEMBLY

    Click here

  2. REMOVE NO. 1 POWER OUTLET SOCKET COVER

    Click here

  3. REMOVE CONSOLE REAR END PANEL

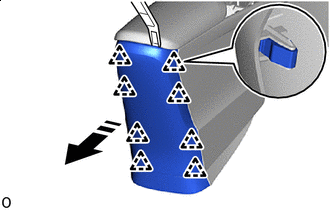

    1. A001X19C01
      B00497S Remove in this Direction

      Using a moulding remover A, disengage the clips to remove the console rear end panel as shown in the illustration.

  4. REMOVE CONSOLE BOX RETAINER

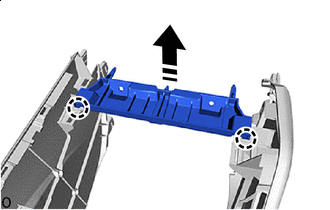

    1. A001X6YC01
      B00497S Remove in this Direction

      Disengage the claws to remove the console box retainer as shown in the illustration.

  5. REMOVE NO. 1 BOX SIDE PANEL

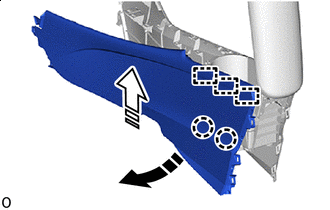

    1. A001T5YC01
      B00497S Remove in this Direction (1)
      B0049AC Remove in this Direction (2)

      Disengage the claws and guides to remove the No. 1 box side panel as shown in the illustration.

  6. REMOVE NO. 2 BOX SIDE PANEL

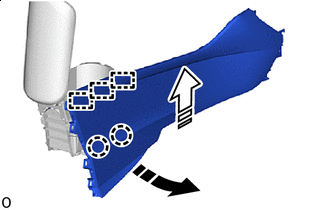

    1. A001XJKC01
      B00497S Remove in this Direction (1)
      B0049AC Remove in this Direction (2)

      Disengage the claws and guides to remove the No. 2 box side panel as shown in the illustration.

  7. REMOVE CONSOLE COMPARTMENT DOOR SUB-ASSEMBLY


    1. A001VLP

      Remove the 4 screws.

    2. Disengage the guides to remove the console compartment door sub-assembly.
