REAR CONSOLE BOX COMPONENTS
ILLUSTRATION
| *1 | COWL SIDE TRIM BOARD LH | *2 | FRONT DOOR SCUFF PLATE LH |
| *3 | INSTRUMENT CLUSTER FINISH PANEL GARNISH ASSEMBLY | *4 | INSTRUMENT PANEL BOX ASSEMBLY |
| *5 | INSTRUMENT PANEL LOWER CENTER FINISH PANEL | *6 | NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY |

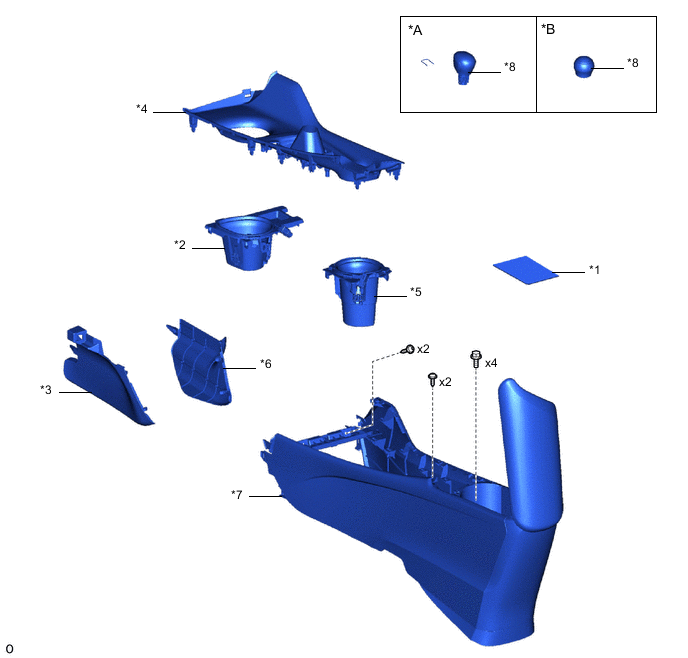

ILLUSTRATION
| *A | for CVT | *B | for Manual Transaxle |
| *1 | CONSOLE BOX CARPET | *2 | CONSOLE BOX CUP HOLDER |
| *3 | CONSOLE BOX INSERT | *4 | CONSOLE UPPER PANEL SUB-ASSEMBLY |
| *5 | NO. 2 CONSOLE BOX CUP HOLDER | *6 | NO. 2 FRONT CONSOLE BOX INSERT |
| *7 | REAR CONSOLE BOX ASSEMBLY | *8 | SHIFT LEVER KNOB SUB-ASSEMBLY |

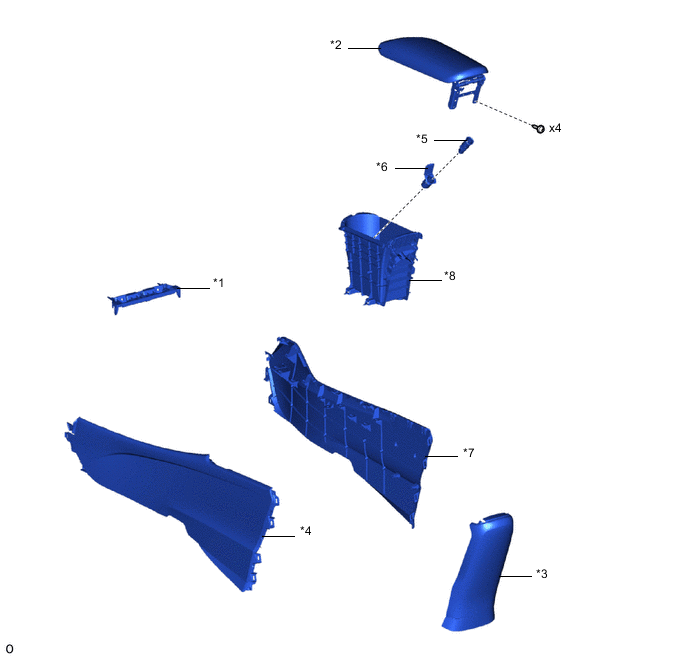

ILLUSTRATION
| *1 | CONSOLE BOX RETAINER | *2 | CONSOLE COMPARTMENT DOOR SUB-ASSEMBLY |
| *3 | CONSOLE REAR END PANEL | *4 | NO. 1 BOX SIDE PANEL |
| *5 | NO. 1 POWER OUTLET SOCKET ASSEMBLY | *6 | NO. 1 POWER OUTLET SOCKET COVER |
| *7 | NO. 2 BOX SIDE PANEL | *8 | NO. 2 CONSOLE BOX |
