MAYDAY SWITCH REMOVAL

PROCEDURE


  1. REMOVE MAP LIGHT ASSEMBLY

    Click here

  2. REMOVE MAYDAY SWITCH ASSEMBLY

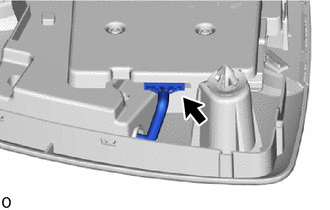

    1. A001TWK

      Disconnect the connector.

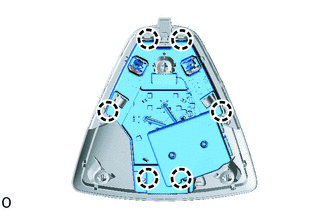

    2. A001UYY

      Disengage the claws to remove the cover.

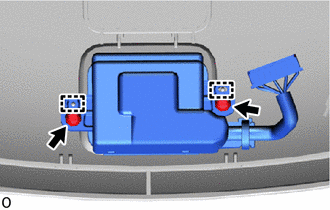

    3. A001T60

      Using a T10 "TORX" driver, remove the 2 screws.

    4. Disengage the guides to remove the mayday switch assembly from the bezel.
