NAVIGATION SYSTEM PARTS LOCATION

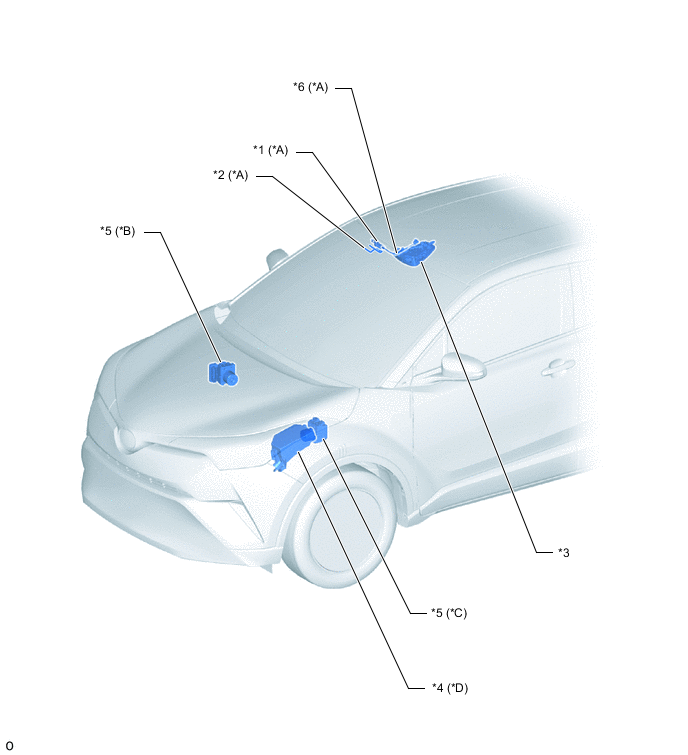

ILLUSTRATION
| *A | w/ DAB Function | *B | for LHD |
| *C | for RHD | *D | for 9 Speakers |
| *1 | DIGITAL AUDIO BROADCASTING ANTENNA ASSEMBLY - DAB |
*2 | WINDOW GLASS ANTENNA WIRE |
| *3 | MAP LIGHT ASSEMBLY (TELEPHONE MICROPHONE ASSEMBLY) | *4 | NO. 1 ENGINE ROOM RELAY BLOCK - AMP NO. 1 FUSE - AMP NO. 2 FUSE |
| *5 | SKID CONTROL ECU (BRAKE ACTUATOR ASSEMBLY) | *6 | NO. 5 ANTENNA CORD SUB-ASSEMBLY |
ILLUSTRATION
| *A | for 6 Speakers | - | - |
| *1 | FRONT NO. 1 SPEAKER ASSEMBLY LH | *2 | FRONT NO. 1 SPEAKER ASSEMBLY RH |
| *3 | FRONT NO. 2 SPEAKER ASSEMBLY LH | *4 | FRONT NO. 2 SPEAKER ASSEMBLY RH |
| *5 | REAR SPEAKER ASSEMBLY LH | *6 | REAR SPEAKER ASSEMBLY RH |
| *7 | ROOF ANTENNA ASSEMBLY - FM Main - AM |
*8 | NO. 2 ANTENNA CORD SUB-ASSEMBLY |
| *9 | NO. 3 ANTENNA CORD SUB-ASSEMBLY | - | - |
ILLUSTRATION
| *A | for 9 Speakers | - | - |
| *1 | FRONT NO. 1 SPEAKER ASSEMBLY LH | *2 | FRONT NO. 1 SPEAKER ASSEMBLY RH |
| *3 | FRONT NO. 2 SPEAKER ASSEMBLY LH | *4 | FRONT NO. 2 SPEAKER ASSEMBLY RH |
| *5 | FRONT NO. 3 SPEAKER ASSEMBLY LH | *6 | FRONT NO. 3 SPEAKER ASSEMBLY RH |
| *7 | NO. 1 SPEAKER WITH BOX ASSEMBLY | *8 | REAR SPEAKER ASSEMBLY LH |
| *9 | REAR SPEAKER ASSEMBLY RH | *10 | WINDOW GLASS ANTENNA WIRE |
| *11 | NO. 3 ANTENNA CORD SUB-ASSEMBLY | *12 | NO. 4 ANTENNA CORD SUB-ASSEMBLY |
| *13 | ROOF ANTENNA ASSEMBLY - FM Main - AM |
*14 | STEREO COMPONENT AMPLIFIER ASSEMBLY |
| *15 | STEREO COMPONENT AMPLIFIER ASSEMBLY | *16 | - FM Sub |

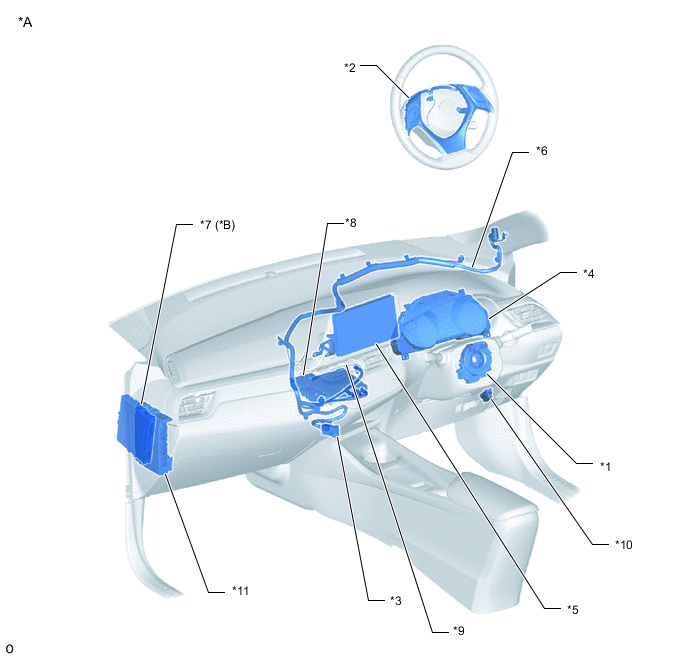

ILLUSTRATION
| *A | for RHD | *B | w/ Stop and Start System |
| *1 | SPIRAL CABLE WITH SENSOR SUB-ASSEMBLY | *2 | STEERING PAD SWITCH ASSEMBLY |
| *3 | NO. 1 STEREO JACK ADAPTER ASSEMBLY | *4 | COMBINATION METER ASSEMBLY |
| *5 | RADIO AND DISPLAY RECEIVER ASSEMBLY | *6 | ANTENNA CORD SUB-ASSEMBLY |
| *7 | ENGINE STOP AND START ECU | *8 | NAVIGATION ECU |
| *9 | ANTENNA CORD SUB-ASSEMBLY (Bluetooth) | *10 | DLC3 |
| *11 | INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - RADIO FUSE - PANEL FUSE - ECU-ACC FUSE - ECU-IG1 NO. 4 FUSE - ECU-DCC NO. 2 FUSE - METER-IG2 FUSE |
- | - |

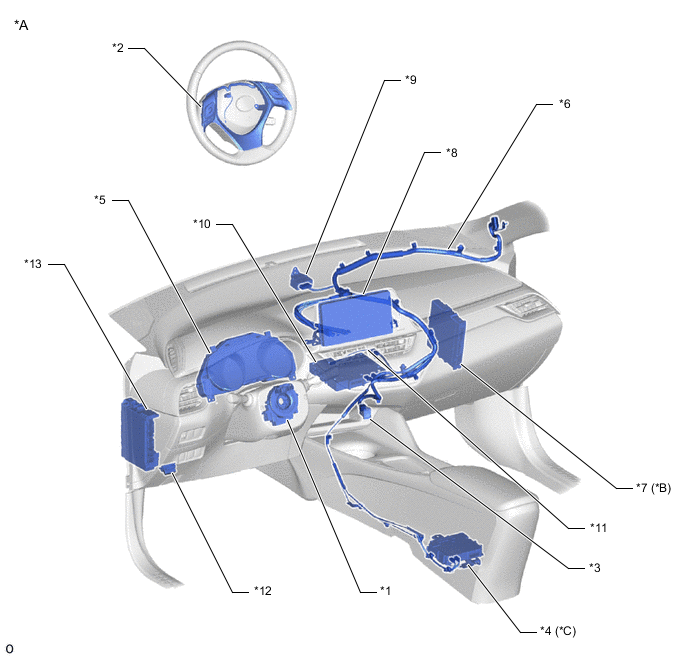

ILLUSTRATION
| *A | for LHD | *B | w/ Stop and Start System |
| *C | w/ Manual (SOS) Switch | - | - |
| *1 | SPIRAL CABLE WITH SENSOR SUB-ASSEMBLY | *2 | STEERING PAD SWITCH ASSEMBLY |
| *3 | NO. 1 STEREO JACK ADAPTER ASSEMBLY | *4 | TELEMATICS TRANSCEIVER |
| *5 | COMBINATION METER ASSEMBLY | *6 | ANTENNA CORD SUB-ASSEMBLY |
| *7 | ENGINE STOP AND START ECU | *8 | RADIO AND DISPLAY RECEIVER ASSEMBLY |
| *9 | ANTENNA DIVIDER | *10 | NAVIGATION ECU |
| *11 | ANTENNA CORD SUB-ASSEMBLY (Bluetooth) | *12 | DLC3 |
| *13 | INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - RADIO FUSE - PANEL FUSE - ECU-ACC FUSE - ECU-IG1 NO. 4 FUSE - ECU-DCC NO. 2 FUSE - METER-IG2 FUSE |
- | - |
