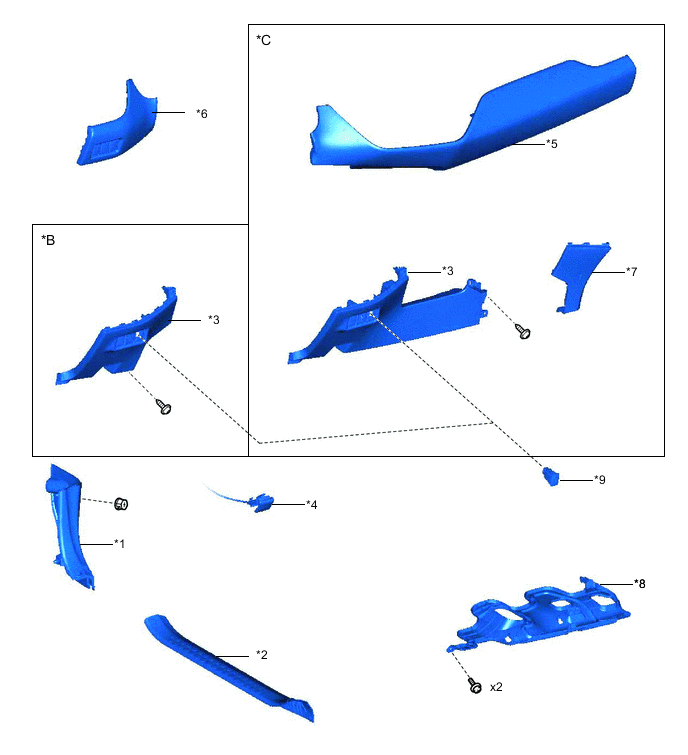

STEERING HEATER SWITCH COMPONENTS
ILLUSTRATION
| *A | w/ Knee Airbag | *B | w/o Knee Airbag |
| *1 | COWL SIDE TRIM BOARD LH | *2 | FRONT DOOR SCUFF PLATE LH |
| *3 | FUSE BOX OPENING COVER | *4 | HOOD LOCK CONTROL LEVER SUB-ASSEMBLY |
| *5 | INSTRUMENT CLUSTER FINISH PANEL GARNISH ASSEMBLY | *6 | INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY |
| *7 | INSTRUMENT PANEL LOWER CENTER FINISH PANEL | *8 | NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY |
| *9 | STEERING HEATER SWITCH | - | - |
