STEERING HEATER SWITCH REMOVAL

Info Added 2017-10-06

CAUTION / NOTICE / HINT

Tech Tips


  • Use the same procedure for the RHD and LHD vehicles.

  • The procedure listed below is for the LHD vehicles.

PROCEDURE


  1. REMOVE FRONT DOOR SCUFF PLATE LH

    Click here

  2. REMOVE COWL SIDE TRIM BOARD LH

    Click here

  3. REMOVE NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

    Click here

  4. REMOVE INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY

    Click here

  5. REMOVE INSTRUMENT CLUSTER FINISH PANEL GARNISH ASSEMBLY (w/o Knee Airbag)

    Click here

  6. REMOVE INSTRUMENT PANEL LOWER CENTER FINISH PANEL (w/o Knee Airbag)

    Click here

  7. DISCONNECT HOOD LOCK CONTROL LEVER SUB-ASSEMBLY

    Click here

  8. REMOVE FUSE BOX OPENING COVER (w/o Knee Airbag)

    Click here

  9. REMOVE FUSE BOX OPENING COVER (w/ Knee Airbag)

    Click here

  10. REMOVE STEERING HEATER SWITCH

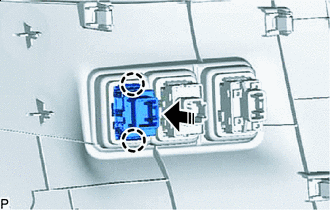

    1. for LHD:


      1. A001UMFC01
        B00497S Remove in this direction

        Disengage the 2 claws to remove the steering heater switch from the fuse box opening cover.

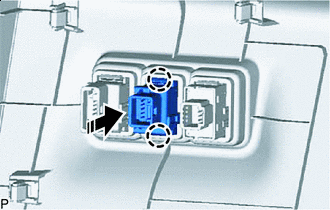

    2. for RHD:


      1. A001TZ6C01
        B00497S Remove in this direction

        Disengage the 2 claws to remove the steering heater switch from the fuse box opening cover.
