POWER STEERING ECU(for RHD) COMPONENTS
Info Added 2017-10-06

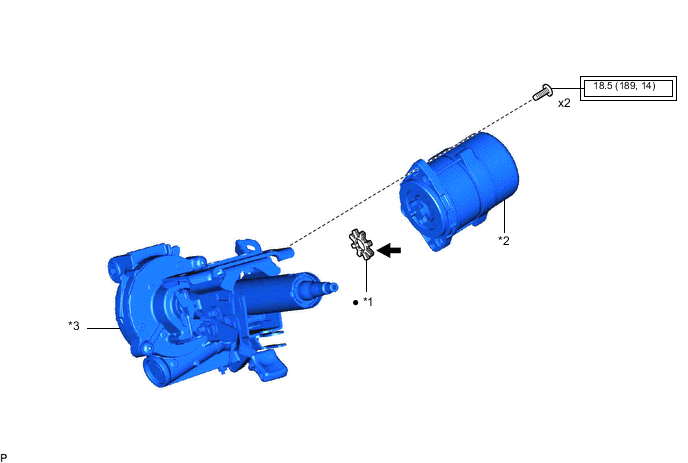

ILLUSTRATION
| *1 | ELECTRIC POWER STEERING MOTOR SHAFT DAMPER | *2 | POWER STEERING ECU ASSEMBLY |
| *3 | ELECTRIC POWER STEERING COLUMN SUB-ASSEMBLY | - | - |
 |
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N*m (kgf*cm, ft.*lbf) | ● | Non-reusable part |
 |
Grease | - | - |
