POWER STEERING SYSTEM, Diagnostic DTC:C1551

DTC Code DTC Name
C1551 IG Power Supply Voltage

DESCRIPTION

The power steering ECU assembly distinguishes the ignition switch status as ON or off through the IG power source circuit.

DTC No. Detection Item DTC Detection Condition Trouble Area Warning Indicate Return-to-normal Condition Note
C1551 IG Power Supply Voltage Open or short in IG power source circuit with ignition switch ON

  • EPS-IG1 fuse

  • IG power source circuit

  • Power steering ECU assembly

 EPS warning light: Comes on The ECU judges the system has returned to normal or the ignition switch is turned ON again -

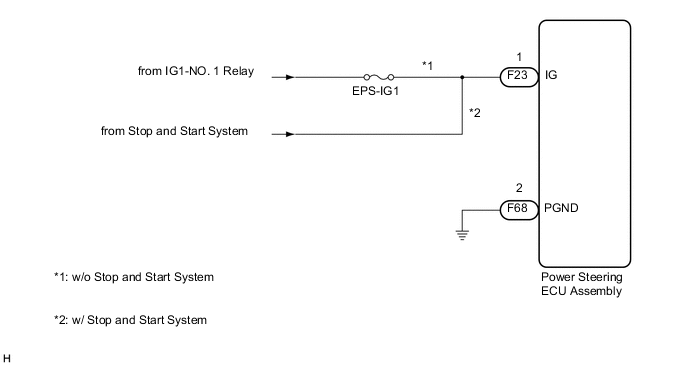

WIRING DIAGRAM

A001X35E05

CAUTION / NOTICE / HINT

Note


  • If the power steering ECU assembly has been replaced, perform assist map writing and torque sensor zero point calibration.

    Click here

  • Inspect the fuses for circuits related to this system before performing the following procedure.

PROCEDURE


  1. CHECK HARNESS AND CONNECTOR (BATTERY - POWER STEERING ECU ASSEMBLY)

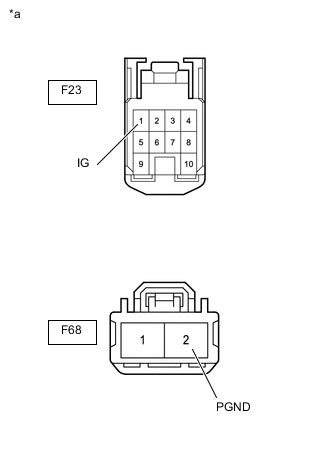

    1. A001U3AC03
      *a

      Front view of wire harness connector

      (to Power Steering ECU Assembly)

      Disconnect the F68 and F23 power steering ECU assembly connectors.

    2. Measure the voltage according to the value(s) in the table below.

      Standard Voltage
      Tester Connection Condition Specified Condition
      F23-1 (IG) - Body ground Ignition switch ON 8 to 16 V

    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance
      Tester Connection Condition Specified Condition
      F68-2 (PGND) - Body ground Always Below 1 Ω
      Result
      Result Proceed to
      OK (for LHD) A
      OK (for RHD) B
      NG C

    A

    REPLACE POWER STEERING ECU ASSEMBLY Click here

    B

    REPLACE POWER STEERING ECU ASSEMBLY Click here

    C

    REPAIR OR REPLACE HARNESS OR CONNECTOR
