REAR SUSPENSION MEMBER(for 2WD) COMPONENTS
Info Added 2017-10-06
ILLUSTRATION

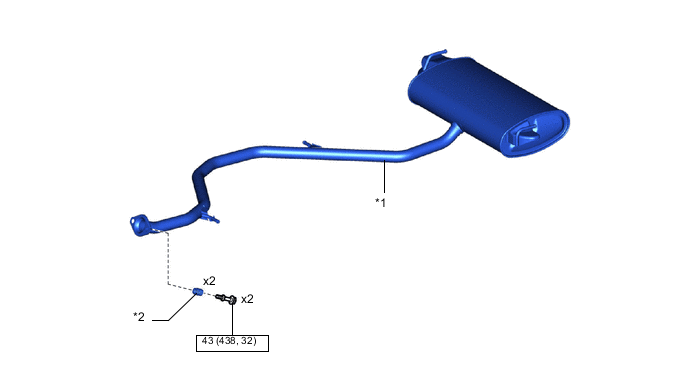

| *1 | TAIL EXHAUST PIPE ASSEMBLY | *2 | COMPRESSION SPRING |
 |
N*m (kgf*cm, ft.*lbf): Specified torque | - | - |
ILLUSTRATION
| *A | w/ Cover | - | - |

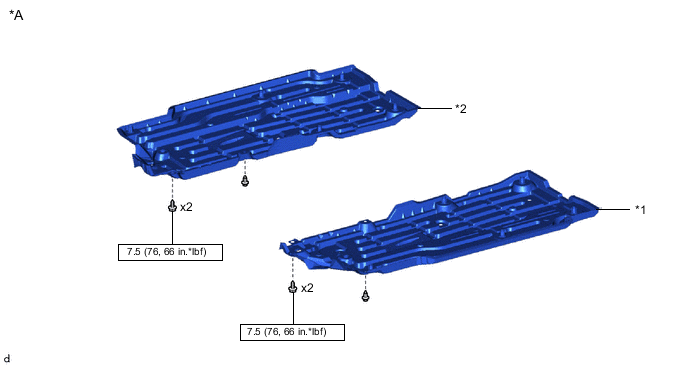

| *1 | FRONT FLOOR COVER LH | *2 | FRONT FLOOR COVER RH |
| |
N*m (kgf*cm, ft.*lbf): Specified torque | - | - |
ILLUSTRATION

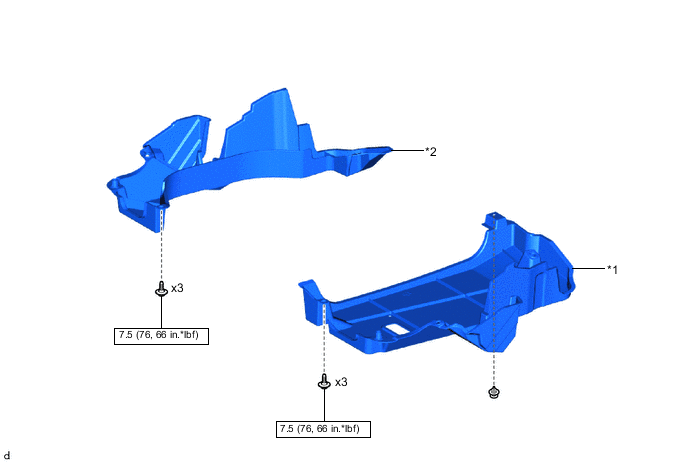

| *1 | REAR FLOOR SIDE MEMBER COVER LH | *2 | REAR FLOOR SIDE MEMBER COVER RH |
| |
N*m (kgf*cm, ft.*lbf): Specified torque | - | - |
ILLUSTRATION

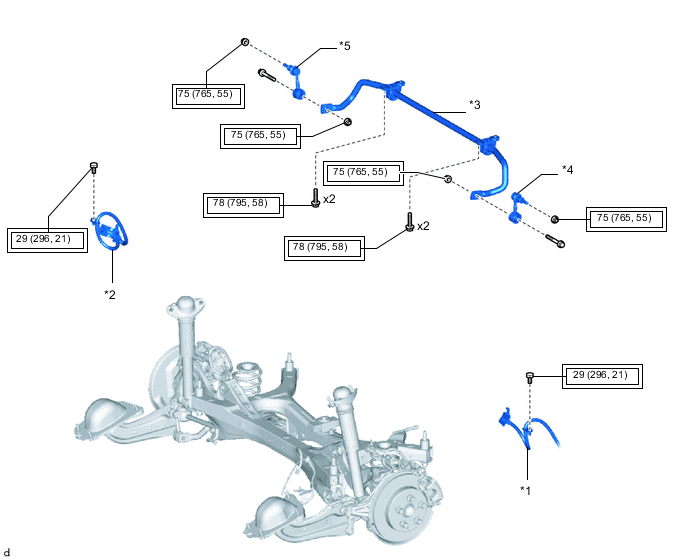

| *1 | REAR FLEXIBLE HOSE LH | *2 | REAR FLEXIBLE HOSE RH |
| *3 | REAR STABILIZER BAR | *4 | REAR STABILIZER LINK ASSEMBLY LH |
| *5 | REAR STABILIZER LINK ASSEMBLY RH | - | - |
 |
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N*m (kgf*cm, ft.*lbf) | - |
ILLUSTRATION

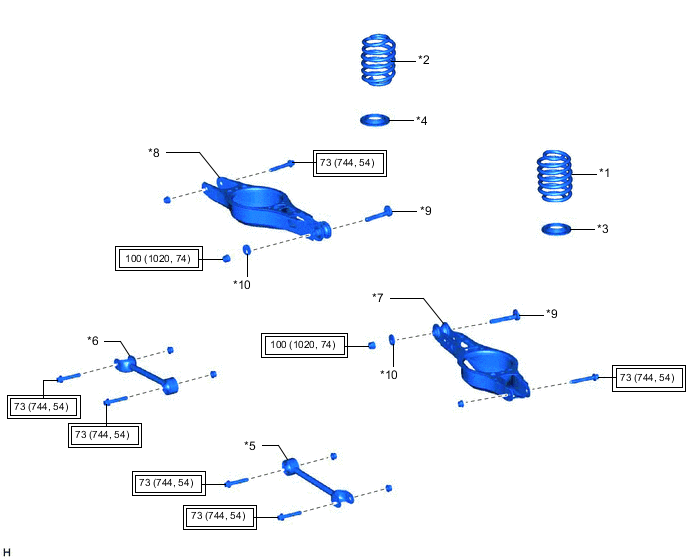

| *1 | REAR COIL SPRING LH | *2 | REAR COIL SPRING RH |
| *3 | REAR LOWER COIL SPRING INSULATOR LH | *4 | REAR LOWER COIL SPRING INSULATOR RH |
| *5 | REAR NO. 1 SUSPENSION ARM ASSEMBLY LH | *6 | REAR NO. 1 SUSPENSION ARM ASSEMBLY RH |
| *7 | REAR NO. 2 SUSPENSION ARM ASSEMBLY LH | *8 | REAR NO. 2 SUSPENSION ARM ASSEMBLY RH |
| *9 | REAR SUSPENSION TOE ADJUST CAM SUB-ASSEMBLY | *10 | NO. 2 CAMBER ADJUST CAM |
| |
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N*m (kgf*cm, ft.*lbf) | - | - |
ILLUSTRATION

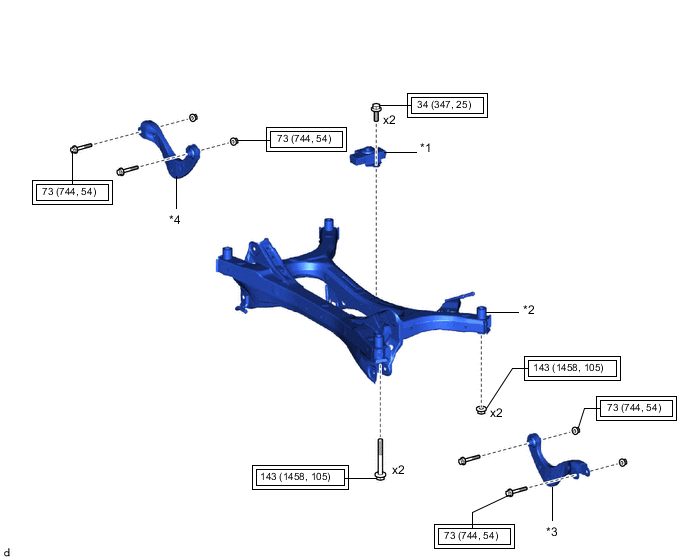

| *1 | REAR SUSPENSION MEMBER DAMPER | *2 | REAR SUSPENSION MEMBER SUB-ASSEMBLY |
| *3 | REAR UPPER CONTROL ARM ASSEMBLY LH | *4 | REAR UPPER CONTROL ARM ASSEMBLY RH |
| |
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N*m (kgf*cm, ft.*lbf) | - | - |
ILLUSTRATION

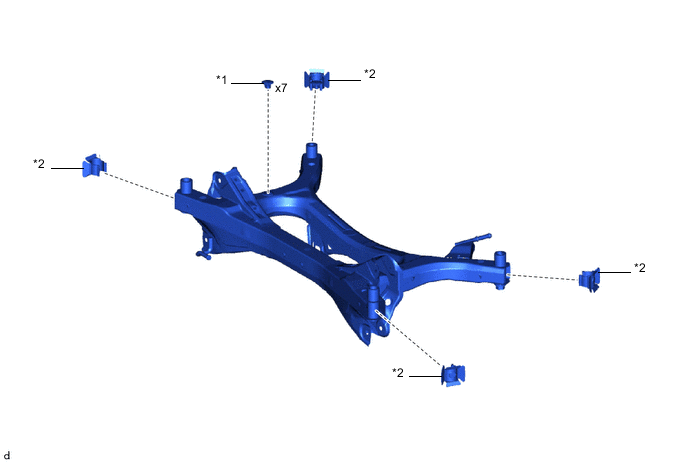

| *1 | HOLE PLUG | *2 | REAR SUSPENSION MEMBER HOLE COVER |
