FRONT LOWER SUSPENSION ARM INSTALLATION

PROCEDURE


  1. INSTALL FRONT LOWER NO. 1 SUSPENSION ARM SUB-ASSEMBLY


    1. Temporarily install the front lower No. 1 suspension arm sub-assembly LH to the front suspension crossmember sub-assembly with the 2 bolts and nut.

    2. Install the front lower No. 1 suspension arm sub-assembly LH to the front lower ball joint assembly LH with the bolt and 2 nuts.

      Torque:
      89 N*m  { 908 kgf*cm, 66 ft.*lbf }

  2. INSTALL FRONT WHEEL

    Click here

  3. STABILIZE SUSPENSION

    Click here

  4. FULLY TIGHTEN FRONT LOWER NO. 1 SUSPENSION ARM SUB-ASSEMBLY

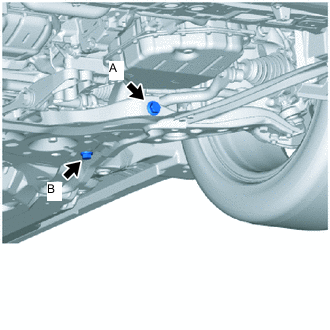

    1. A001VCME01

      Fully tighten the front lower No. 1 suspension arm sub-assembly with the 2 bolts.

      Torque:
      Bolt A
      240 N*m  { 2447 kgf*cm, 177 ft.*lbf }
      Bolt B
      125 N*m  { 1275 kgf*cm, 92 ft.*lbf }

      Note

      Because the nut has its own stopper, do not turn the nut. Tighten the bolt with the nut secured.

  5. INSTALL REAR ENGINE UNDER COVER LH

    Click here

  6. INSTALL NO. 1 ENGINE UNDER COVER

    Click here

  7. INSPECT AND ADJUST FRONT WHEEL ALIGNMENT

    Click here

  8. INITIALIZATION HEADLIGHT ECU SUB-ASSEMBLY

    Click here
